Three-phase Servo Motor Type Voltage Regulator TNS Series
This high-power three-phase compensated voltage regulator is designed for industrial, villas and commercial settings. It is ideal for stabilizing voltage for large equipment or multiple devices.
MOQ：1 PCS
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
| Model | TNS |
| Place of Origin： | Zhejiang, China |
| Brand Name： | Pitbull/Hinorms |
| Certification: | CE/ISO9001/ROHS/FCC |
| Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
| Delivery Time: | 7-45 days(depends on quantity) |
| Payment Terms: | 30% Deposit 70% Balance Before Delivery |
| Supply Ability: | 50000 Units/Month |
Applications
Home Appliances, Office Equipment, Medical Equipment, Industrial Equipment
Competitive Advantage
• We are the standard drafter of the voltage stabilizer industry in China. Our founder, Mr. Hu, is a member of the China Power Supply Society.
• For over 20 years, we have focused solely on the research and manufacturing of voltage stabilizers.
• Our products have no substitutes in the market, because after years of hard work, we are the only factory that has truly solved the multiple pain points in the industry.
Specifications
| Product model | TNS | ||||
| Capacity | 9KVA/15KVA/20KVA/30KVA | ||||
| Input voltage range | Option(1) | AC 260-456V | |||
| Option(2) | AC 300-430V | ||||
| Output voltage | AC 380V(Customized for regional voltage.) | ||||
| Output Precision | ±3% | ||||
| Frequency | 50Hz/60Hz | ||||
| Phase types | Three-phase | ||||
| Function | Control Type | Three-phase Servo Motor Type | |||
| Protection | Over Voltage/Overload/High Temperature/Short Circuit | ||||
| Delaying | Short Delay:3-5secs | ||||
| Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | ||||
| Regulation& Compensation |
Three Regulating Transformers | ||||
| Effciency | AC-AC | ≥98% | |||
| Environmental | Temperature | -20~50 degree | |||
| Humidity | <90% | ||||
| Elevation | <4000m | ||||
Packing Information
| Model | Pcs/Carton | Product Size(CM) | Carton Size(CM) | Net weight(KG) | Gross Weight(KG) |

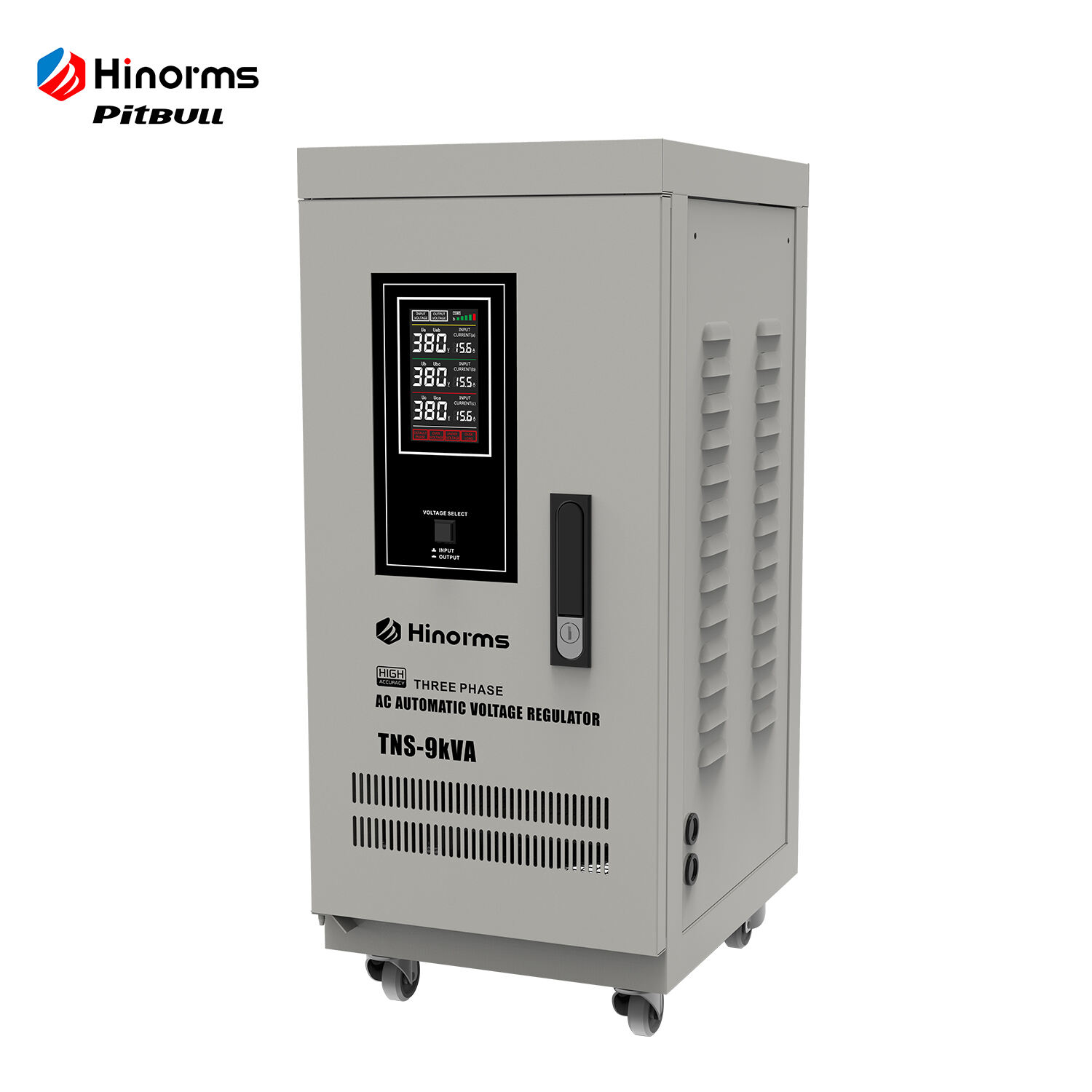

| TNS-9KVA | 1 | 32*41.5*75.4 | 38*46.9*83.9 | 53 | 58 |
| TNS-15KVA | 1 | 33.7*41.5*81.2 | 39.7*47*89.7 | 61 | 66.5 |

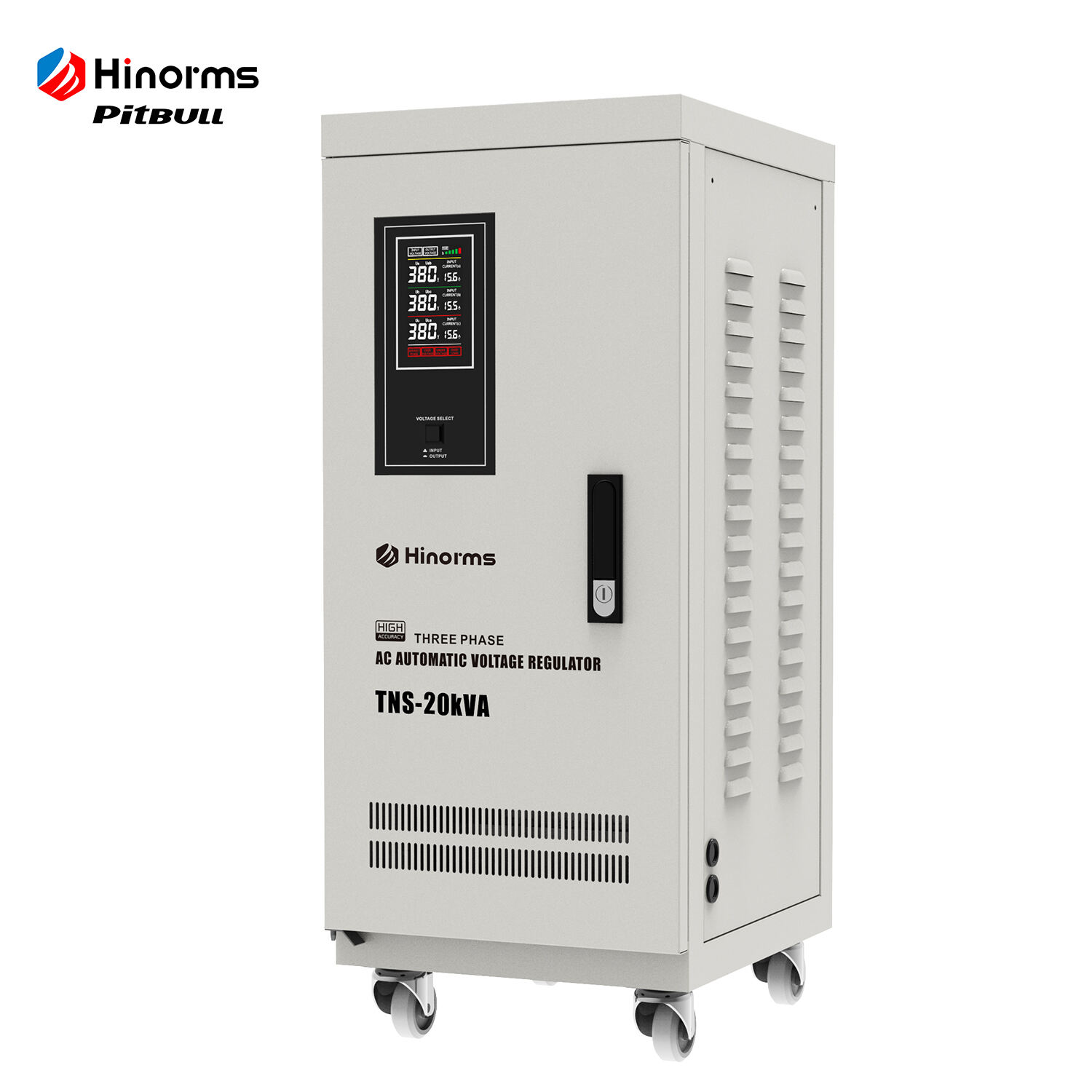

| TNS-20KVA | 1 | 37.7*44.7*102 | 43.7*50.1*108.5 | 92 | 100.2 |

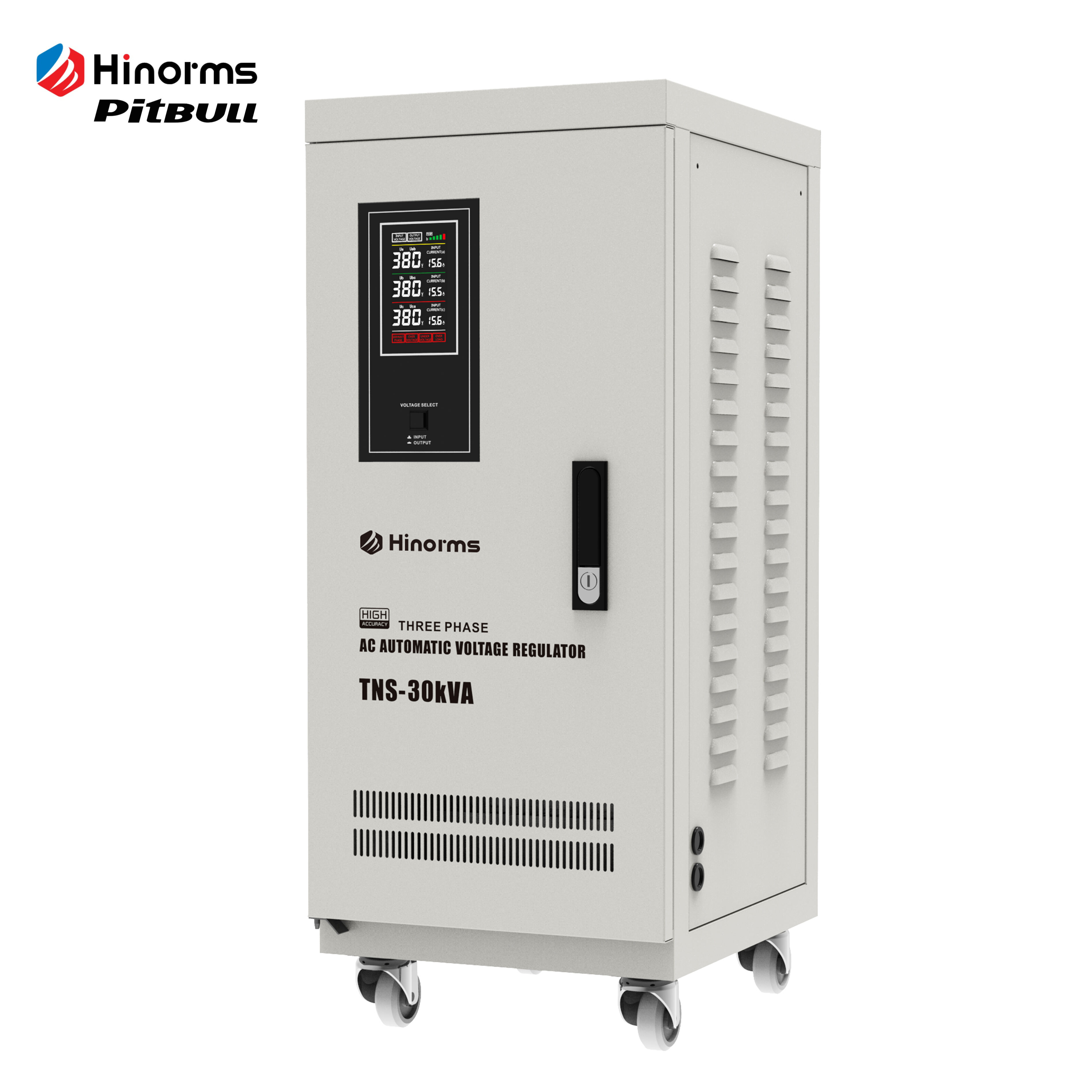

| TNS-30KVA | 1 | 37.7*44.7*102 | 43.7*50.1*108.5 | 101.5 | 115.5 |
