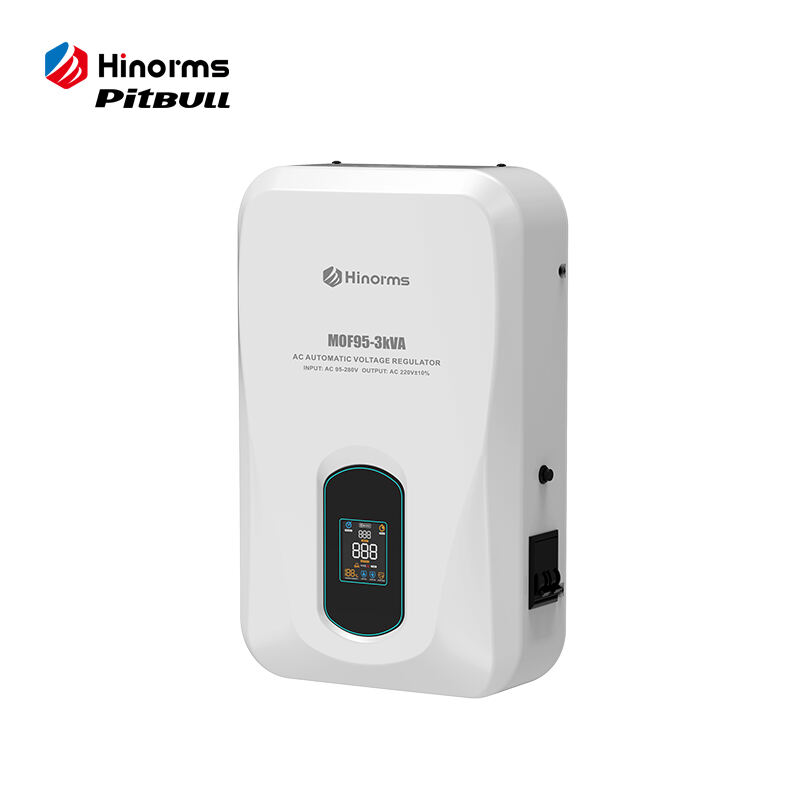

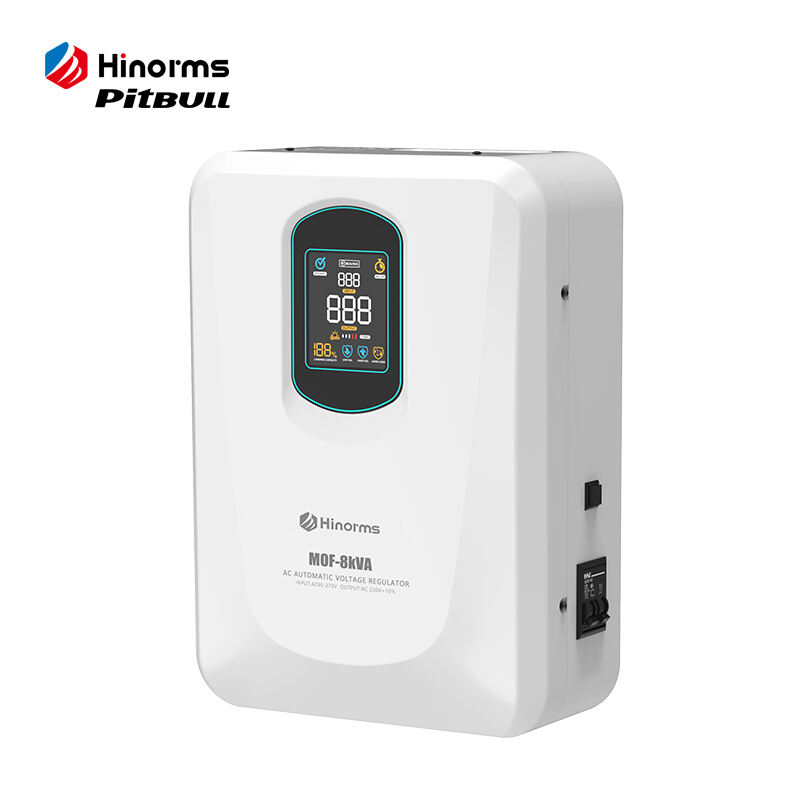

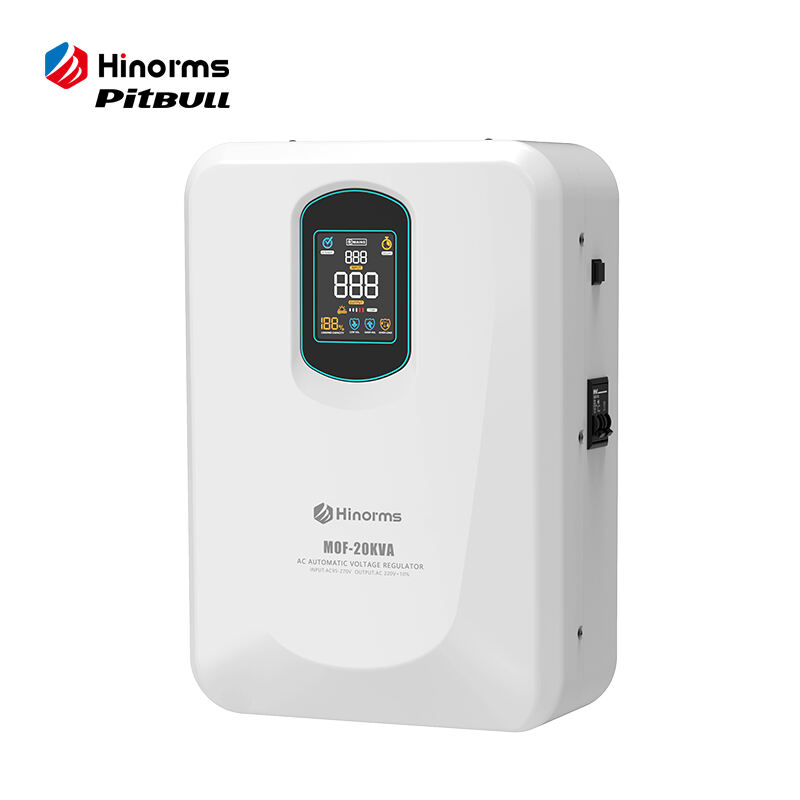

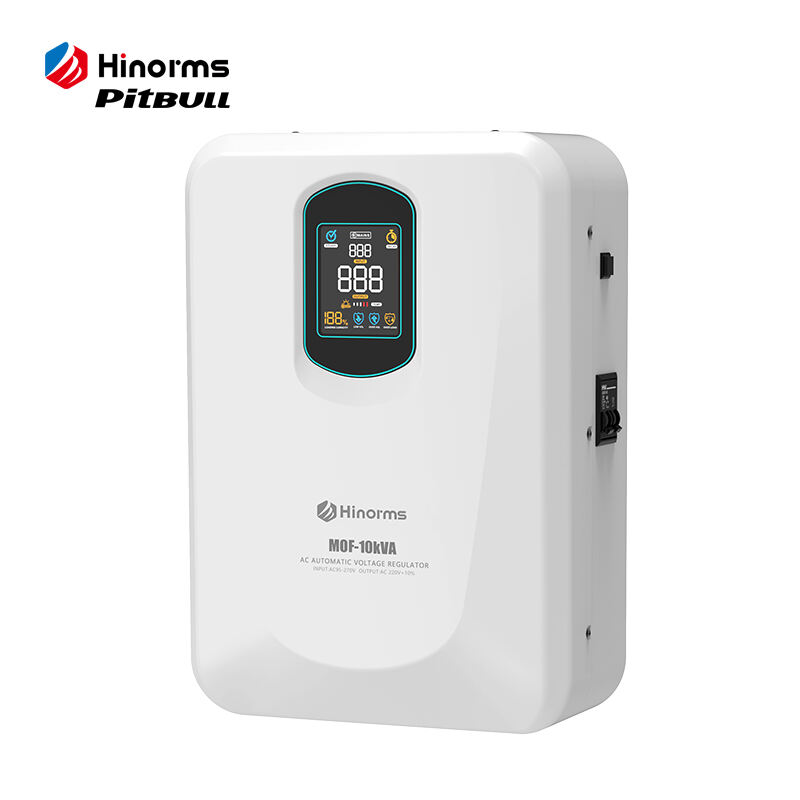

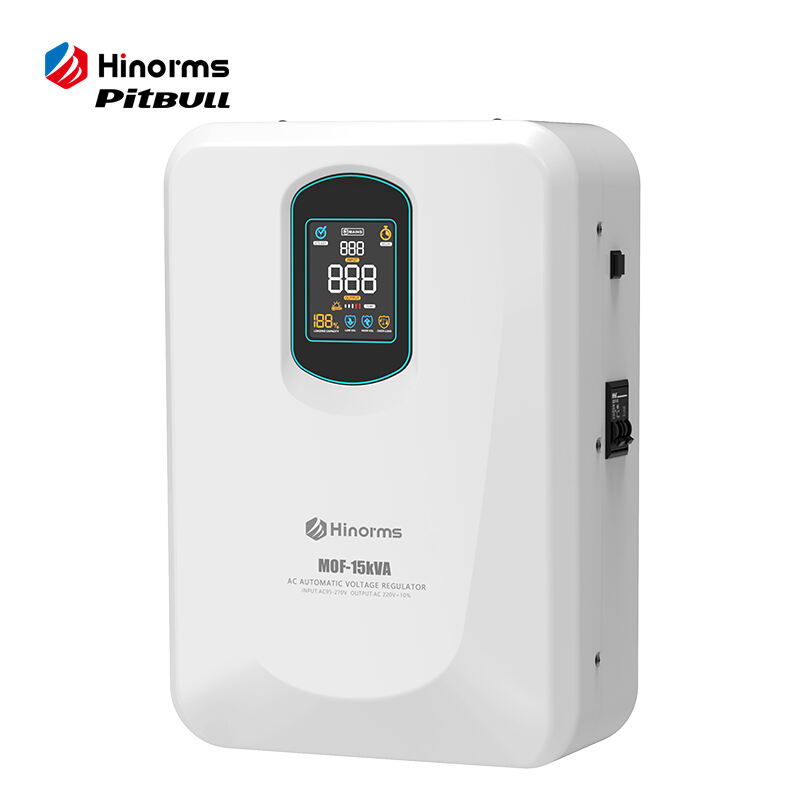

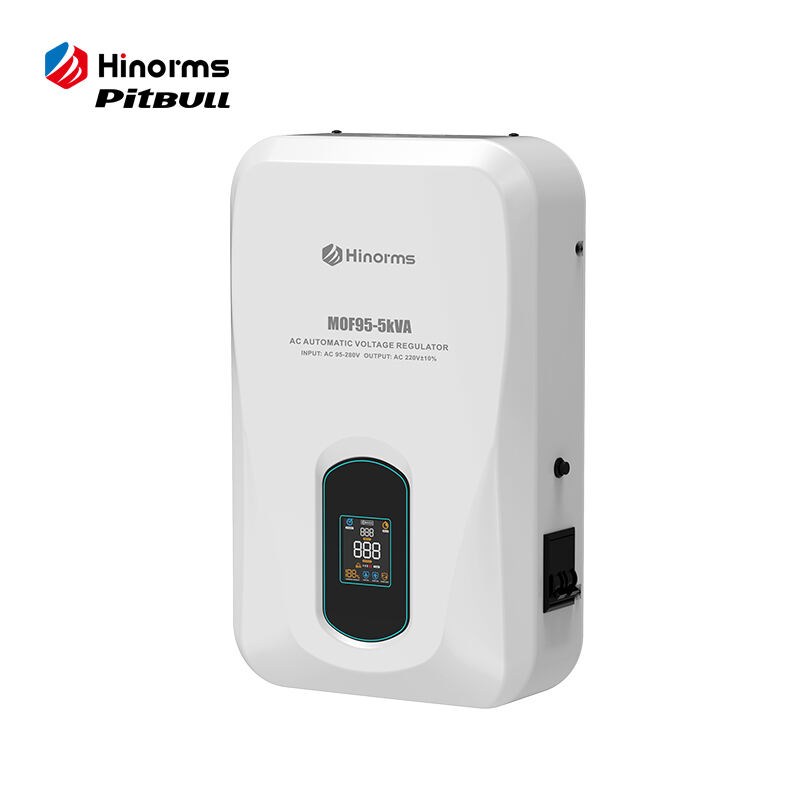

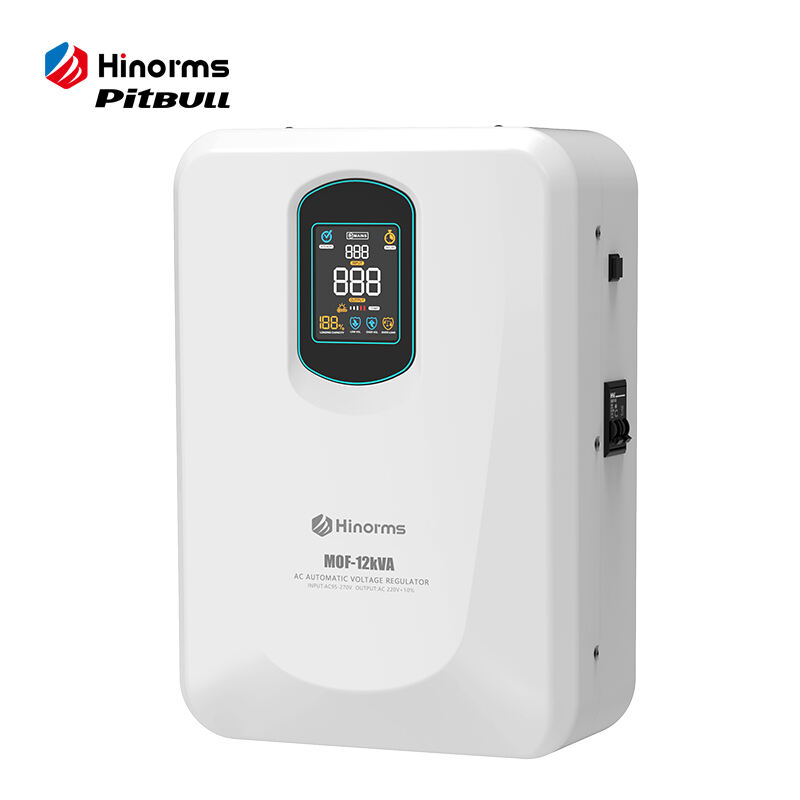

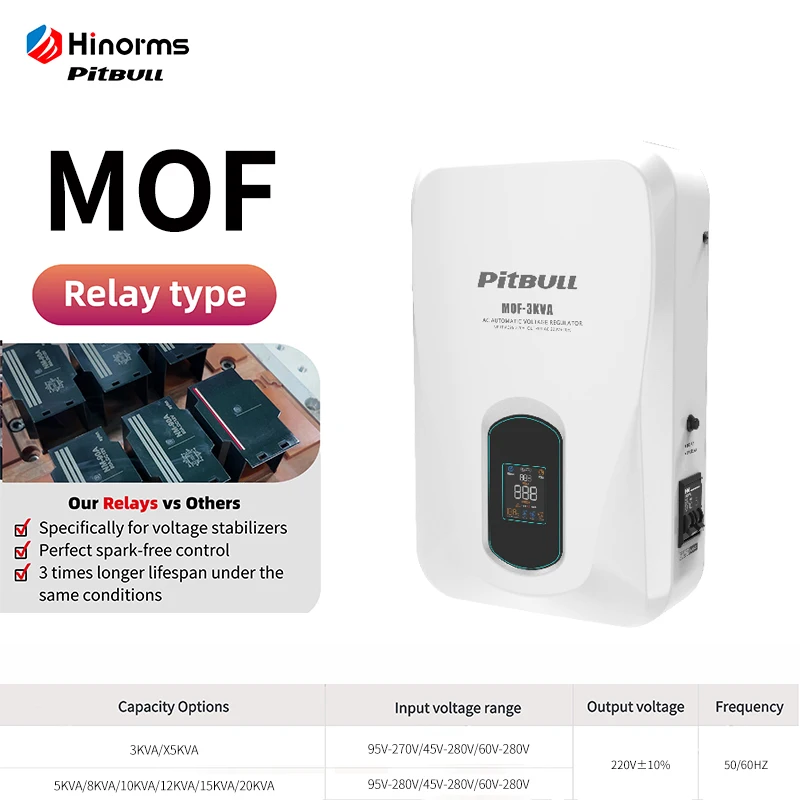

Relay Type Voltage Regulator MOF Series
This series is highly versatile, making it ideal for various applications, especially home appliances. Its strong adaptability corrects local power grid distortions, ensuring a stable voltage output and reliable protection for electrical devices.
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
Model | MOF |
Place of Origin: | Zhejiang, China |
Brand Name: | Pitbull/Hinorms |
Certification: | CE/ISO9001/ROHS/FCC |
Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
Delivery Time: | 7-45 days(depends on quantity) |
Payment Terms: | 30% Deposit 70% Balance Before Delivery |
Supply Ability: | 50000 Units/Month |
Applications
Competitive Advantage
Specifications
Product model | MOF | |||
Capacity | 3KVA/X5KVA | 5KVA |
8KVA/10KVA/12KVA/15KVA/20KVA |
|
Input voltage range | Option(1) | AC 95-270V | AC 95-280V | AC 95-280V |
Option(2) | AC 60-280V | AC 60-280V | AC 60-280V | |
Option(3) | AC 45-280V | AC 45-280V | AC 45-280V | |
Output voltage | AC 220V(Customized for regional voltage.) | |||
Output Precision | ±10% | |||
Frequency | 50Hz/60Hz | |||
Phase types | Single Phase | |||
Function | Control Type | Relay Type | ||
Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | |||
Delaying | 3-5secs(Short) ; 3-7mins(Long) | |||
Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | |||
Effciency | AC-AC | ≥95% | ≥98% | |
Environmental | Temperature | -20~50 degree | ||
Humidity | <90% | |||
Elevation | <4000m |
Packing Information
Model | Input Range | Pcs/Carton | Product Size(CM) | Carton Size(CM) |
Net weight (KG) |
Gross Weight (KG) |
MOF-3KVA | 95-270V | 1 | 39*24.5*10 | 44*29.5*15.3 | 10.5 | 11.5 |
MOF-3KVA |
60-280V 45-280V |
1 | 39*24.5*10 | 44*29.5*15.3 | 11 | 12 |
MOF-X5KVA | 95-270V | 1 | 39*24.5*10 | 45*31.5*15.5 | 11.8 | 12.2 |
MOF-X5KVA |
60-280V 45-280V |
1 | 39*24.5*10 | 45*31.5*15.5 | 13.8 | 14.7 |
MOF-5KVA | 95-280V | 1 | 41*29.5*15 | 46*34.5*21 | 14.7 | 15.5 |
MOF-5KVA |
60-280V 45-280V |
1 | 41*29.5*15 | 46*34.5*21 | 15.1 | 16.3 |
MOF-8KVA | 95-280V | 1 | 41*29.5*15 | 46*34.5*21 | 15.7 | 16.8 |
MOF-8KVA |
60-280V 45-280V |
1 | 41*29.5*15 | 46*34.5*21 | 17.9 | 18.7 |
MOF-10KVA | 95-280V | 1 | 45*31*17 | 51.8*38.5*23.7 | 22 | 23 |
MOF-10KVA |
60-280V 45-280V |
1 | 45*31*17 | 51.8*38.5*23.7 | 22.7 | 23.7 |
MOF-12KVA | 95-280V | 1 | 45*31*17 | 51.8*38.5*23.7 | 23.4 | 24.6 |
MOF-12KVA |
60-280V 45-280V |
1 | 45*31*17 | 51.8*38.5*23.7 | 24 | 25.2 |
MOF-15KVA | 95-280V | 1 | 45*31*17 | 51.8*38.5*23.7 | 24.9 | 26.1 |
MOF-15KVA |
60-280V 45-280V |
1 | 45*31*17 | 51.8*38.5*23.7 | 25.5 | 26.7 |
MOF-20KVA | 95-280V | 1 | 45*31*18 | 51.8*38.5*24.7 | 27 | 28 |
MOF-20KVA |
60-280V 45-280V |
1 | 45*31*18 | 51.8*38.5*24.7 | 27.5 | 28.5 |
