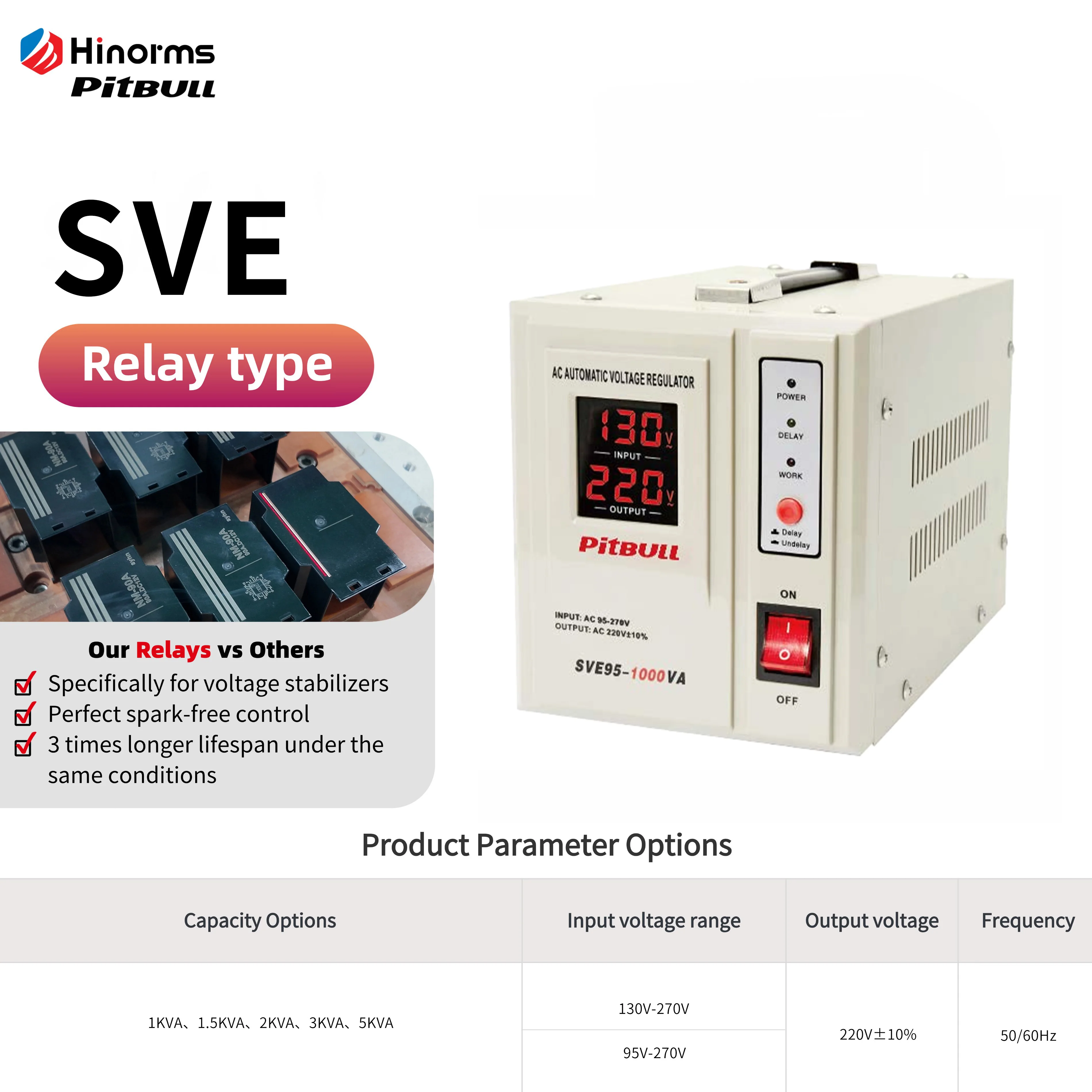

Relay Type Voltage Regulator SVE Series
This series is highly versatile, making it ideal for various applications, especially home appliances. Its strong adaptability corrects local power grid distortions, ensuring a stable voltage output and reliable protection for electrical devices.
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
Model | SVE |
Place of Origin: | Zhejiang, China |
Brand Name: | Pitbull/Hinorms |
Certification: | CE/ISO9001/ROHS/FCC |
Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
Delivery Time: | 7-45 days(depends on quantity) |
Payment Terms: | 30% Deposit 70% Balance Before Delivery |
Supply Ability: | 50000 Units/Month |
Applications
Competitive Advantage
Specifications
Product model | SVE | ||
Capacity | 1KVA/1.5KVA/2KVA/3KVA/X5KVA | ||
Input voltage range | Option(1) | AC 95-270V | |
Option(2) | AC 130-270V | ||
Output voltage | AC 220V(Customized for regional voltage.) | ||
Output Precision | ±10% | ||
Frequency | 50Hz/60Hz | ||
Phase types | Single Phase | ||
Function | Control Type | Relay Type | |
Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | ||
Delaying | 3-5secs(Short) ; 3-7mins(Long) | ||
Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | ||
Effciency | AC-AC | ≥95% | |
Environmental | Temperature | -20~50 degree | |
Humidity | <90% | ||
Elevation | <4000m |
Packing Information
Model
|
Input Range |
Pcs/Carton
|
Product Size(CM)
|
Carton Size(CM)
|
Net weight
(KG)
|
Gross Weight
(KG)
|
SVE-1KVA
|
95-270V
|
4
|
28.5*15*19
|
39.5*33*45
|
22.4 | 25.3 |
SVE-1KVA
|
130-270V
|
4
|
28.5*15*19 | 39.5*33*45 |
22.4
|
25.3 |
SVE-1.5KVA
|
95-270V
|
4
|
28.5*15*19 | 39.5*33*45 | 29.4 | 32.3 |
SVE-1.5KVA
|
130-270V
|
4
|
28.5*15*19 | 39.5*33*45 | 29.4 | 32.3 |
SVE-2KVA
|
95-270V
|
4
|
28.5*15*19 | 39.5*33*45 | 32 | 34.9 |
SVE-2KVA
|
130-270V
|
4
|
28.5*15*19 | 39.5*33*45 | 32 | 34.9 |
SVE-3KVA
|
95-270V
|
1
|
38.5*21.5*25.3
|
42.5*26.5*29
|
9.5
|
10.3
|
SVE-3KVA
|
130-270V
|
1
|
38.5*21.5*25.3 | 42.5*26.5*29 |
9.5
|
10.3
|
SVE-X5KVA
|
95-270V
|
1
|
38.5*21.5*25.3 | 42.5*26.5*29 |
12.8
|
13.6
|
SVE-X5KVA
|
130-270V
|
1
|
38.5*21.5*25.3 | 42.5*26.5*29 |
12.8
|
13.6
|
