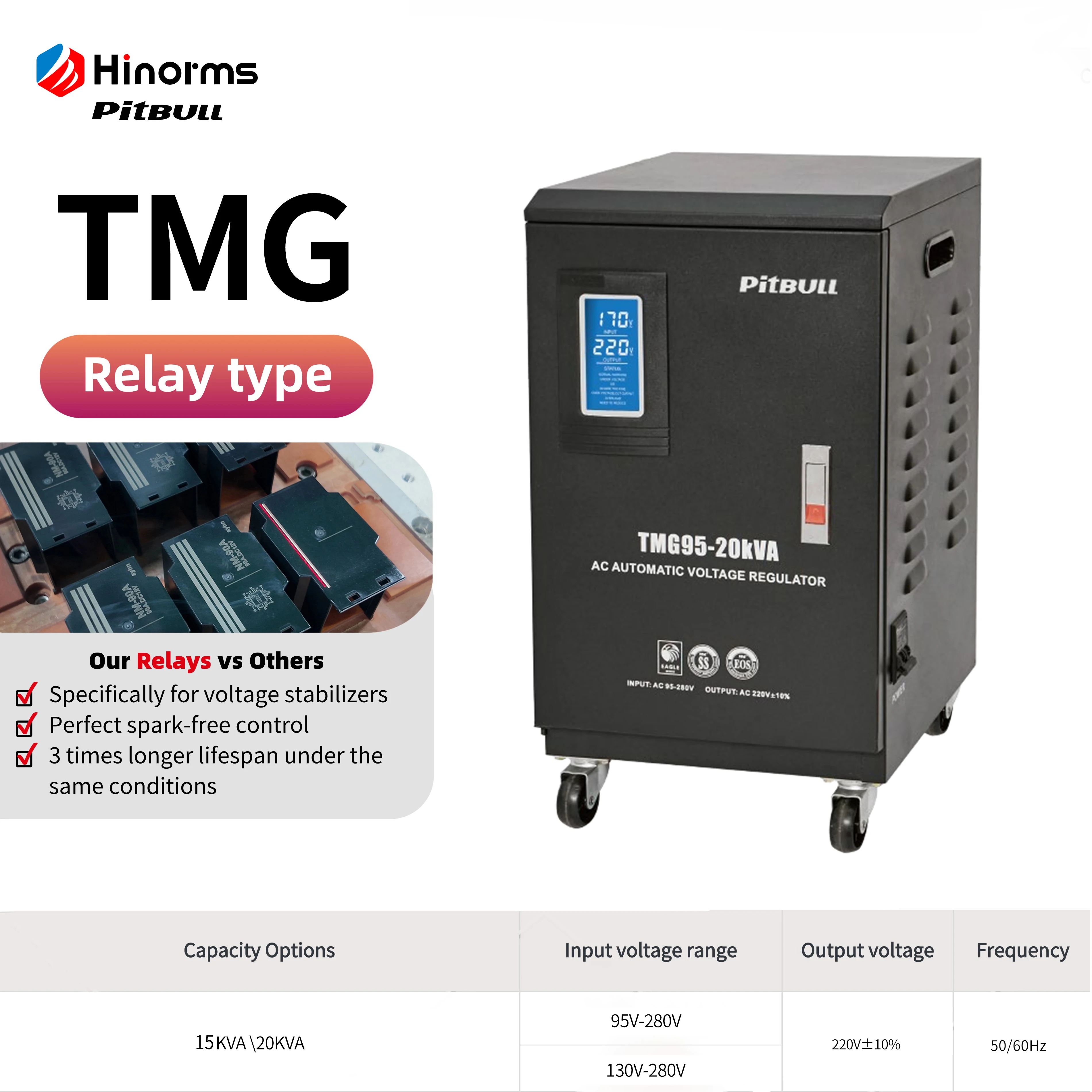

Relay Type Voltage Regulator TMG Series
This series is highly versatile, making it ideal for various applications, especially home appliances. Its strong adaptability corrects local power grid distortions, ensuring a stable voltage output and reliable protection for electrical devices.
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
Model | TMG |
Place of Origin: | Zhejiang, China |
Brand Name: | Pitbull/Hinorms |
Certification: | CE/ISO9001/ROHS/FCC |
Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
Delivery Time: | 7-45 days(depends on quantity) |
Payment Terms: | 30% Deposit 70% Balance Before Delivery |
Supply Ability: | 50000 Units/Month |
Applications
Competitive Advantage
Specifications
Product model |
TMG |
||
Capacity |
15KVA/20KVA |
||
Input voltage range | Option(1) |
AC 95-280V |
|
Option(2) |
AC 130-270V |
||
Output voltage | AC 220V(Customized for regional voltage.) | ||
Output Precision | ±10% | ||
Frequency | 50Hz/60Hz | ||
Phase types | Single Phase | ||
Function | Control Type | Relay Type | |
Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | ||
Delaying | 3-5secs(Short) ; 3-7mins(Long) | ||
Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | ||
Effciency | AC-AC | ≥98% | |
Environmental | Temperature | -20~50 degree | |
Humidity | <90% | ||
Elevation | <4000m |
Packing Information
Model
|
Input Range
|
Pcs/Carton
|
Product Size(CM)
|
Carton Size(CM)
|
Net Weight
(KG)
|
Gross Weight
(KG)
|

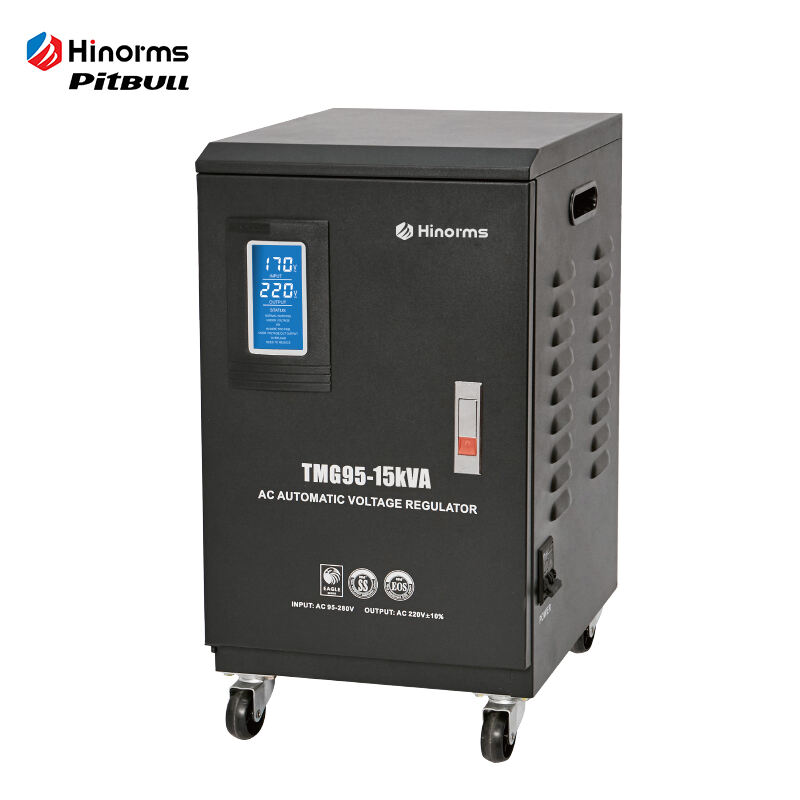

TMG-15KVA
|
95-280V
130-270V
|
1
|
34.5*31.5*57.5 | 40*37*66.5 |
30.5
|
36.8 |

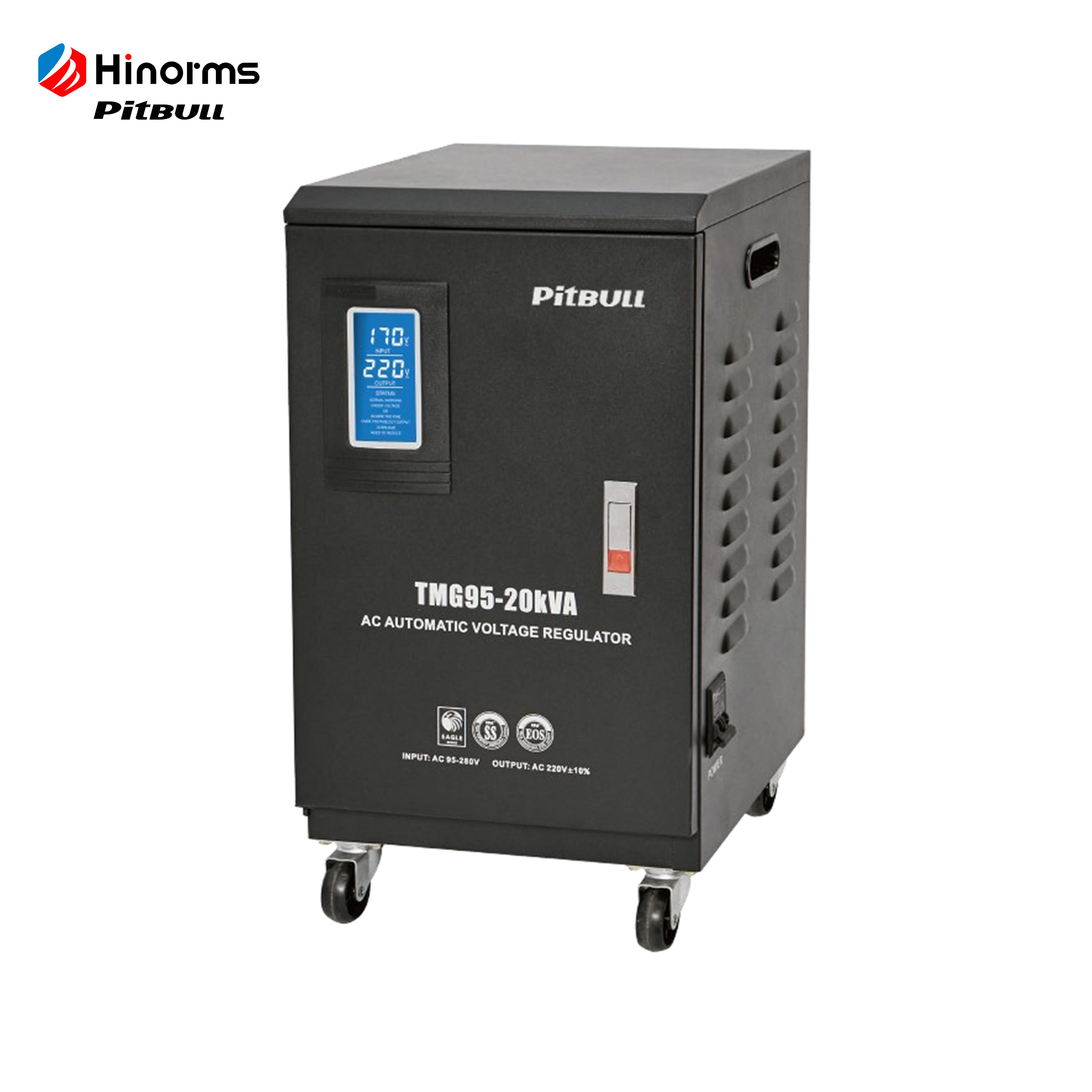

TMG-20KVA
|
95-280V
130-270V
|
1
|
34.5*31.5*57.5 | 40*37*66.5 | 33.5 | 39.7 |
