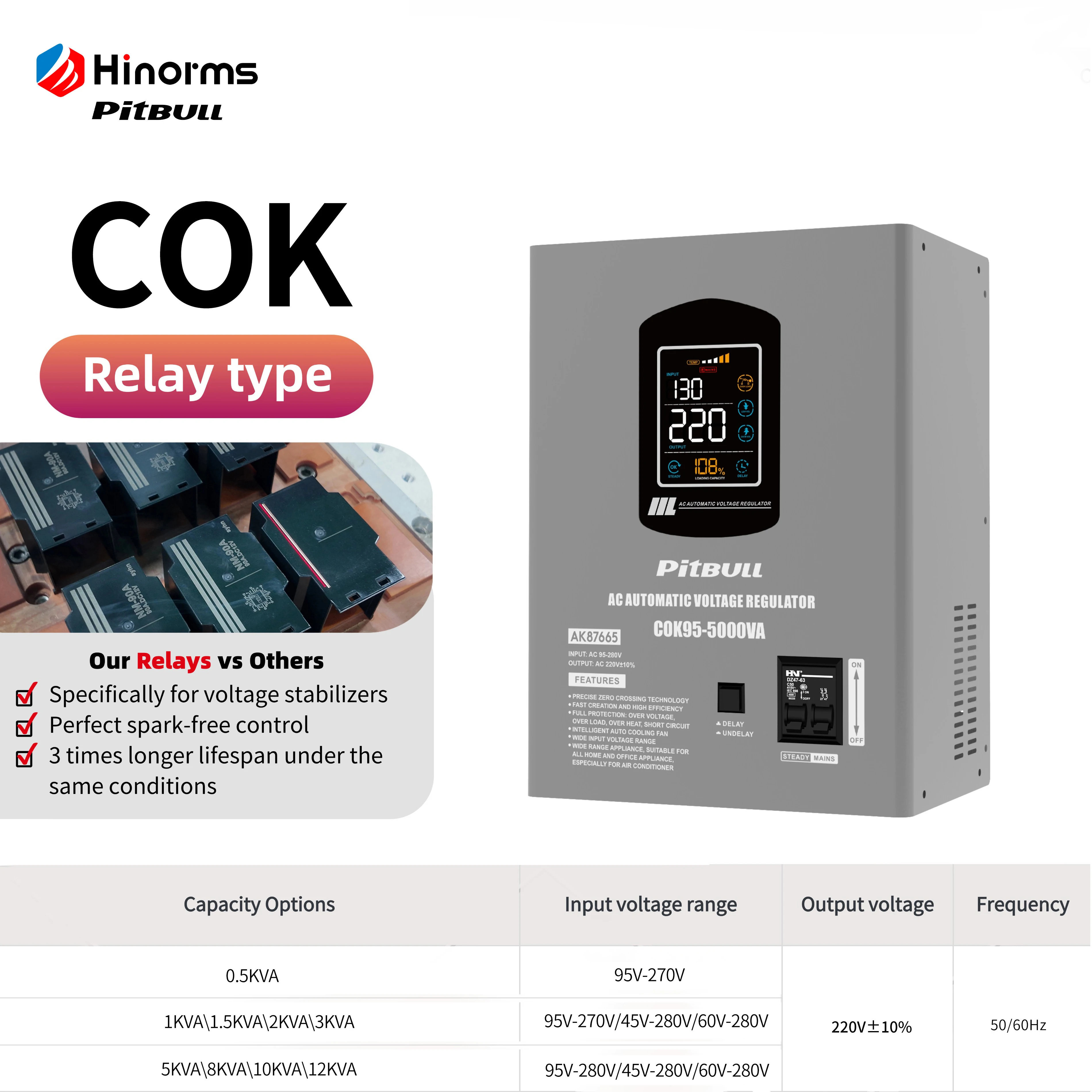

Relay Type Voltage Regulator COK Series
This series is highly versatile, making it ideal for various applications, especially home appliances. Its strong adaptability corrects local power grid distortions, ensuring a stable voltage output and reliable protection for electrical devices.
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
Model | COK |
Place of Origin: | Zhejiang, China |
Brand Name: | Pitbull/Hinorms |
Certification: | CE/ISO9001/ROHS/FCC |
Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
Delivery Time: | 7-45 days(depends on quantity) |
Payment Terms: | 30% Deposit 70% Balance Before Delivery |
Supply Ability: | 50000 Units/Month |
Applications
Competitive Advantage
Specifications
Product model | COK | ||||
Capacity | 0.5KVA | 1KVA/1.5KVA/2KVA/3KVA | 5KVA | 8KVA/10KVA/12KVA | |
Input voltage range | Option(1) | AC 95-270V | AC 95-270V | AC 95-280V | AC 95-280V |
Option(2) | / | AC 60-280V | AC 60-280V | AC 60-280V | |
Option(3) | / | AC 45-280V | AC 45-280V | AC 45-280V | |
Output voltage | AC 220V(Customized for regional voltage.) | ||||
Output Precision | ±10% | ||||
Frequency | 50Hz/60Hz | ||||
Phase types | Single Phase | ||||
Function | Control Type | Relay Type | |||
Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | ||||
Delaying | 3-5secs(Short) ; 3-7mins(Long) | ||||
Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | ||||
Effciency | AC-AC | ≥95% | ≥98% | ||
Environmental | Temperature | -20~50 degree | |||
Humidity | <90% | ||||
Elevation | <4000m |
Packing Information
Model
|
Input Range
|
Pcs/Carton
|
Product Size(CM)
|
Carton Size(CM)
|
Net weight
(KG)
|
Gross Weight
(KG)
|

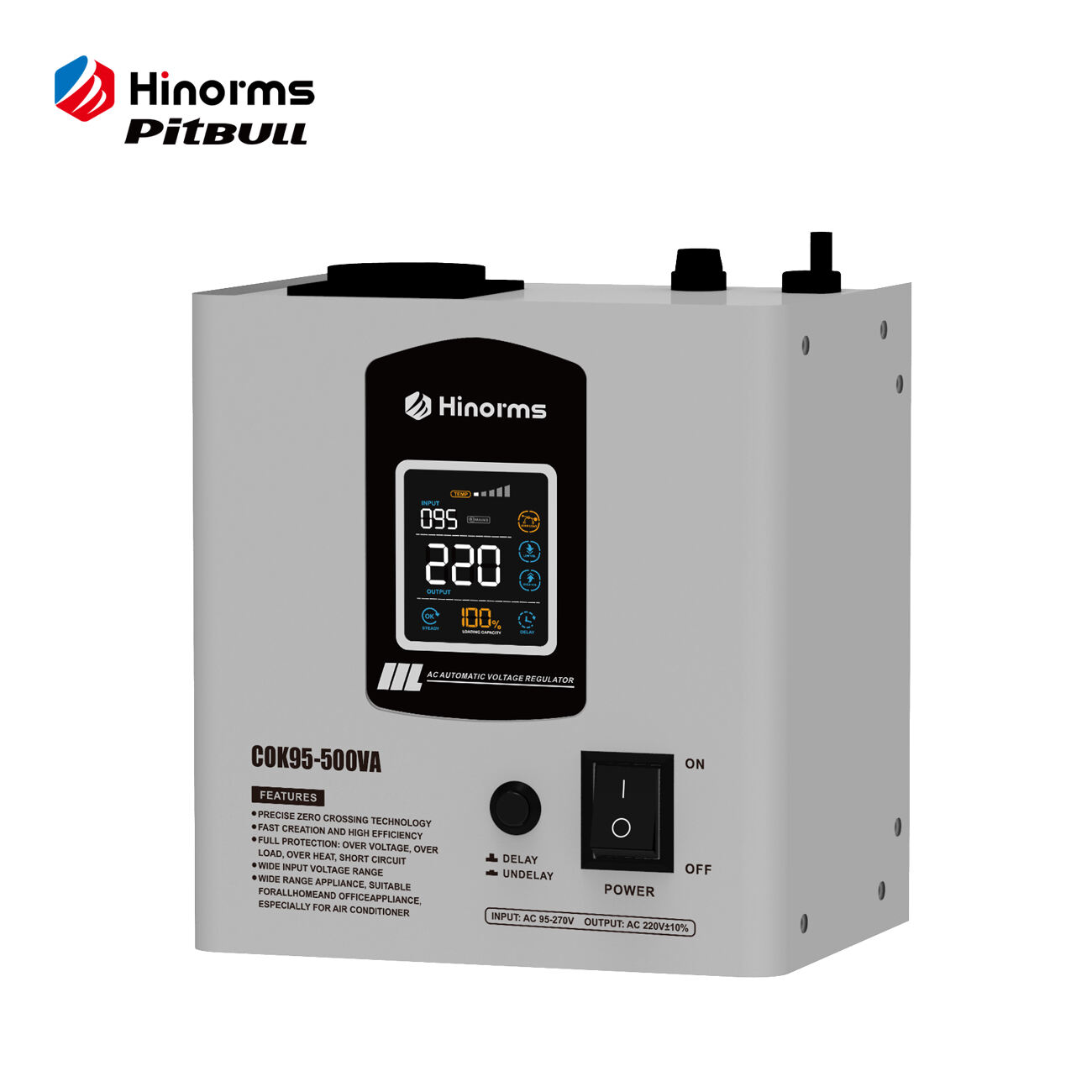

COK-500VA
|
95-270V
|
4
|
17.5*16.5*12
|
41.4*25.8*33
|
12.8
|
14.6
|

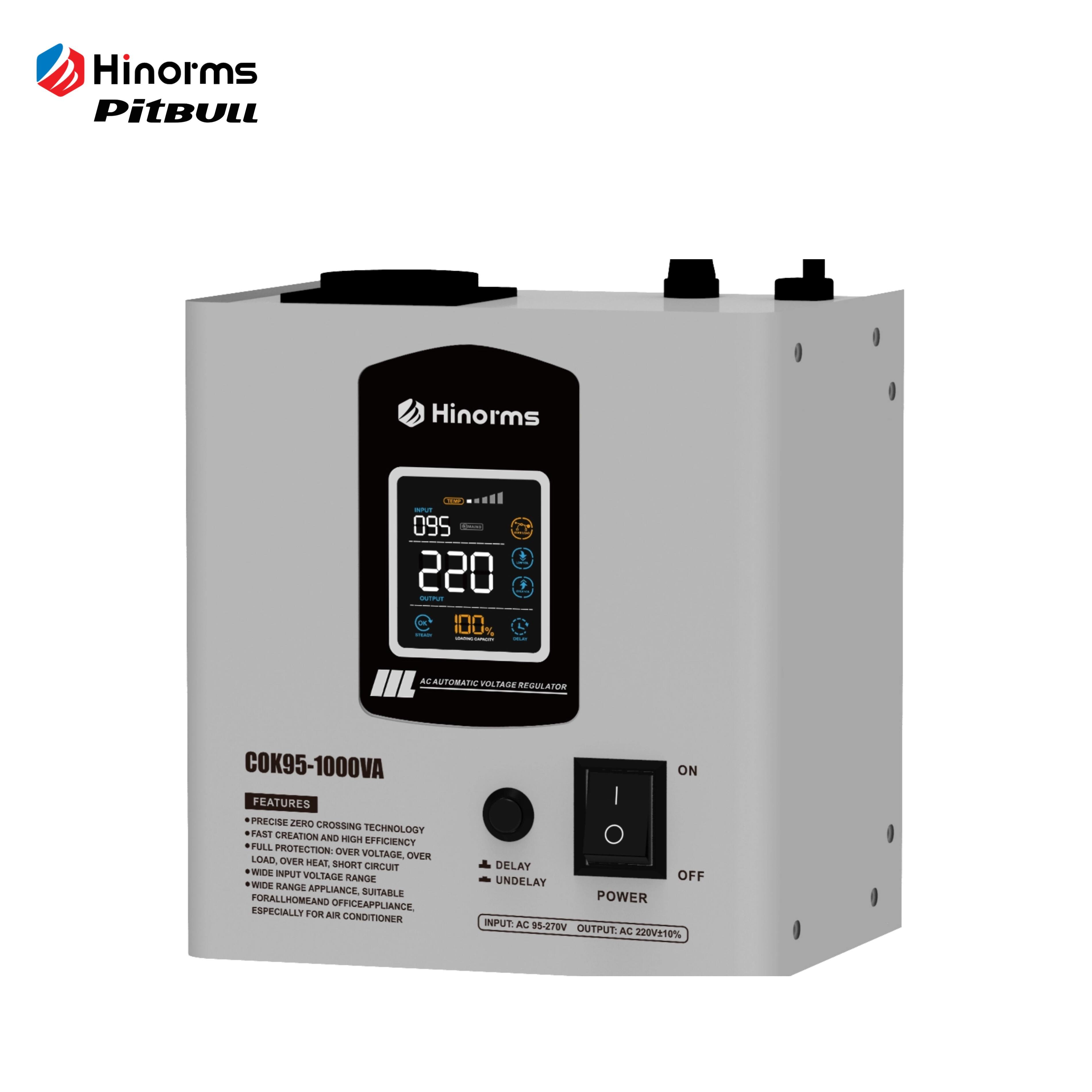

COK-1KVA
|
95-270V
|
4
|
17.5*16.5*12 | 41.4*25.8*33 |
15
|
16.4
|
COK-1KVA
|
60-280V
45-280V
|
4
|
24*16.5*12
|
41.4*32.2*33 |
16
|
17.6
|
COK1.5VA
|
95-270V
|
4
|
17.5*16.5*12
|
41.4*25.8*33 |
18.8
|
20.6
|

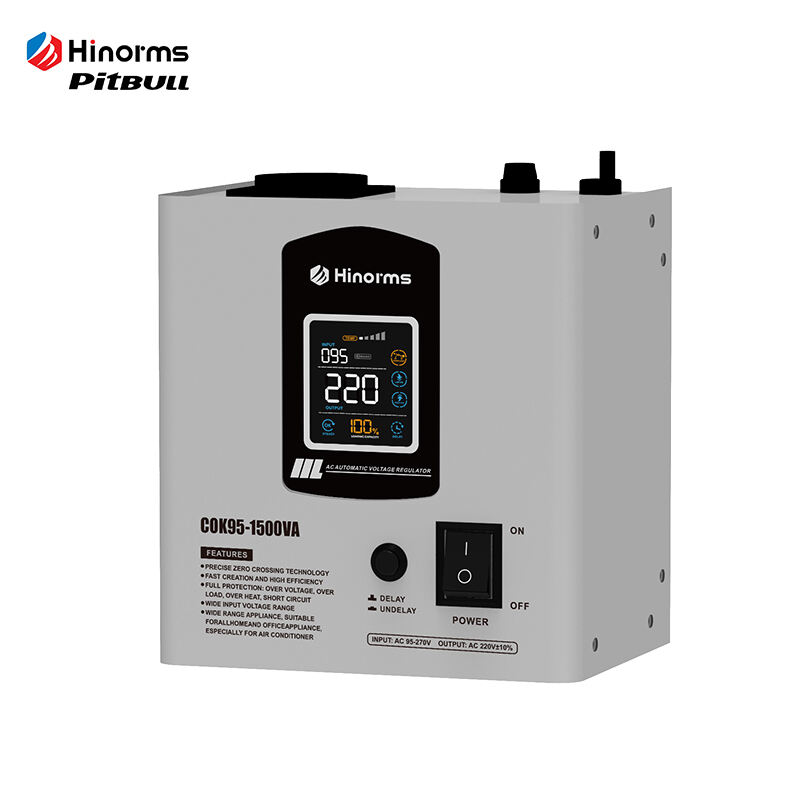

COK-1.5KVA
|
60-280V
45-280V
|
4
|
24*16.5*12
|
41.4*32.2*33
|
20
|
22
|

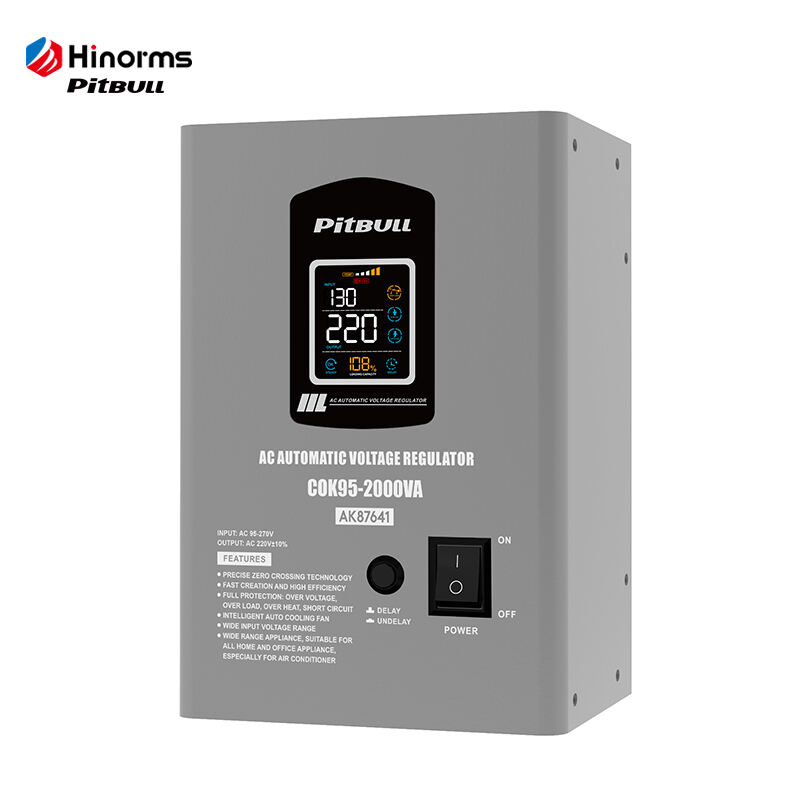

COK-2KVA
|
95-270V
|
4
|
26.2*16.5*12
|
41.4*32.2*33
|
24.5
|
26.5
|
COK-2KVA
|
60-280V
45-280V
|
4
|
24.2*16.5*12
|
41.4*34.2*33
|
24.8
|
26.9
|

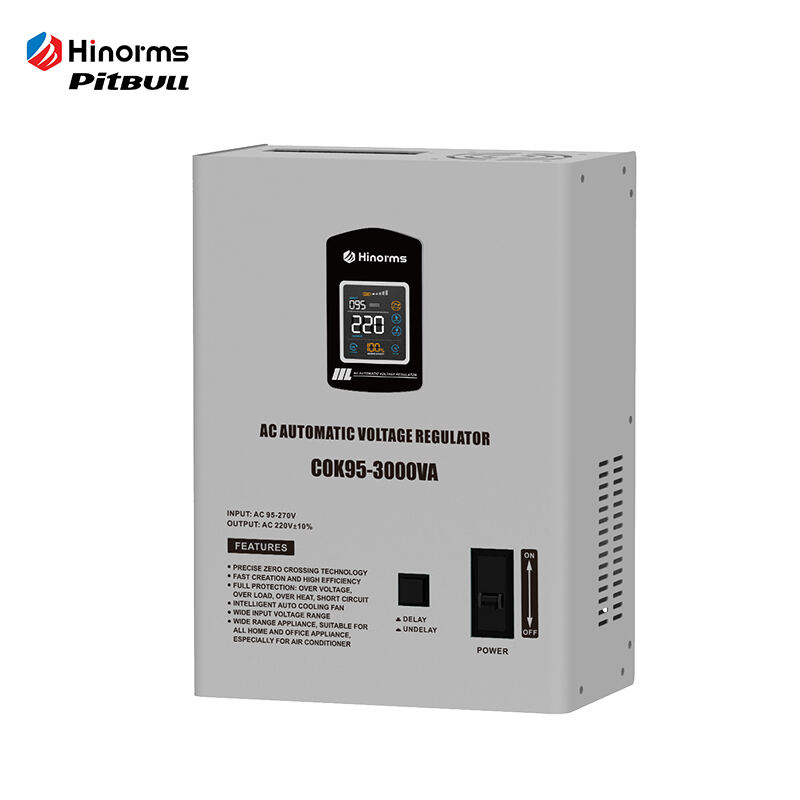

COK-3KVA
|
95-270V
|
1
|
33*24*14
|
38*29*19
|
11.2
|
11.8
|
COK-3KVA
|
60-280V
45-280V
|
1
|
33*24*14 | 38*29*19 |
11.2
|
11.8
|

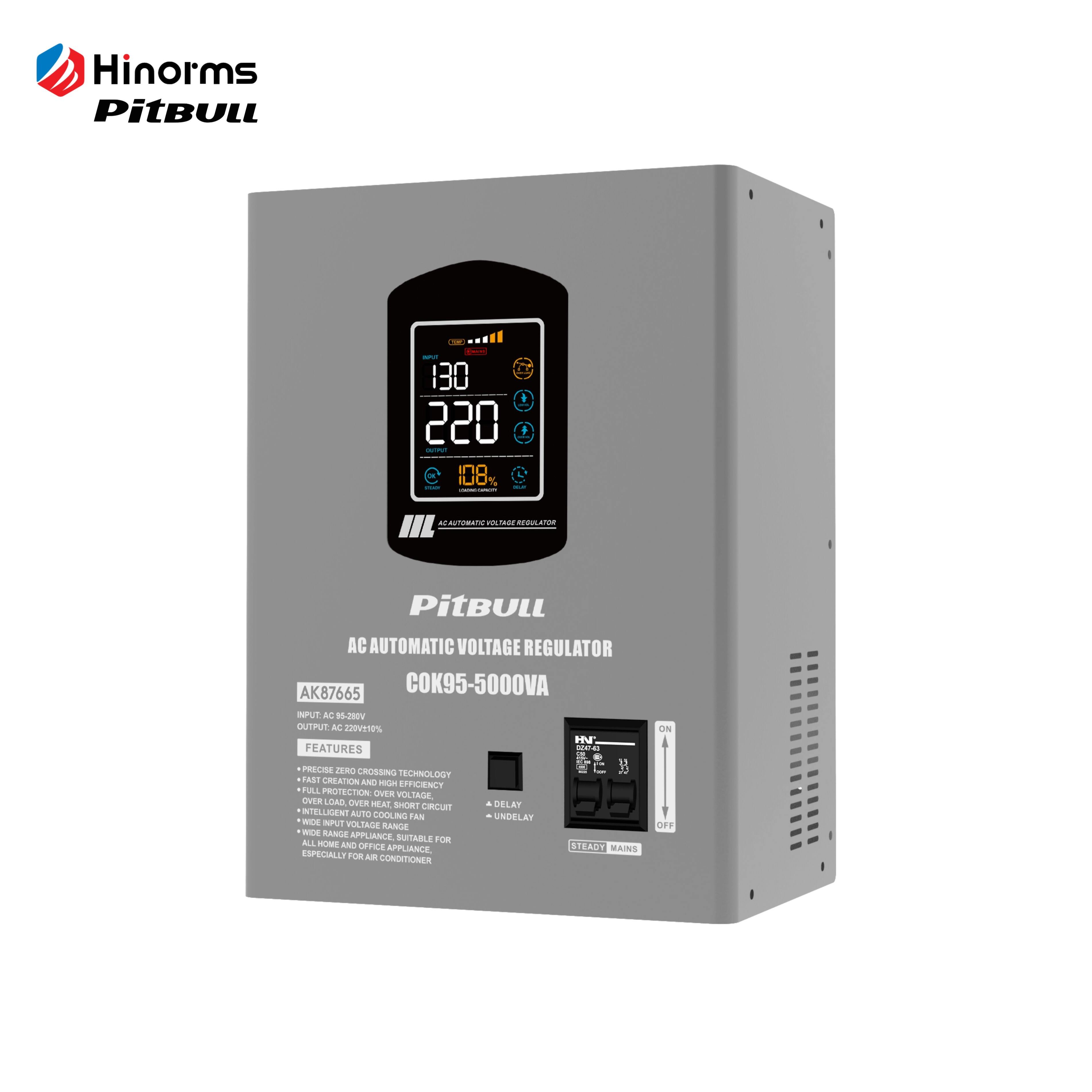

COK-5KVA
|
95-280V
|
1
|
36.5*27*17.5
|
41.5*32*23
|
15.4
|
16.3
|
COK-5KVA
|
60-280V
45-280V
|
1
|
36.5*27*17.5 | 41.5*32*23 |
15.4
|
16.3
|

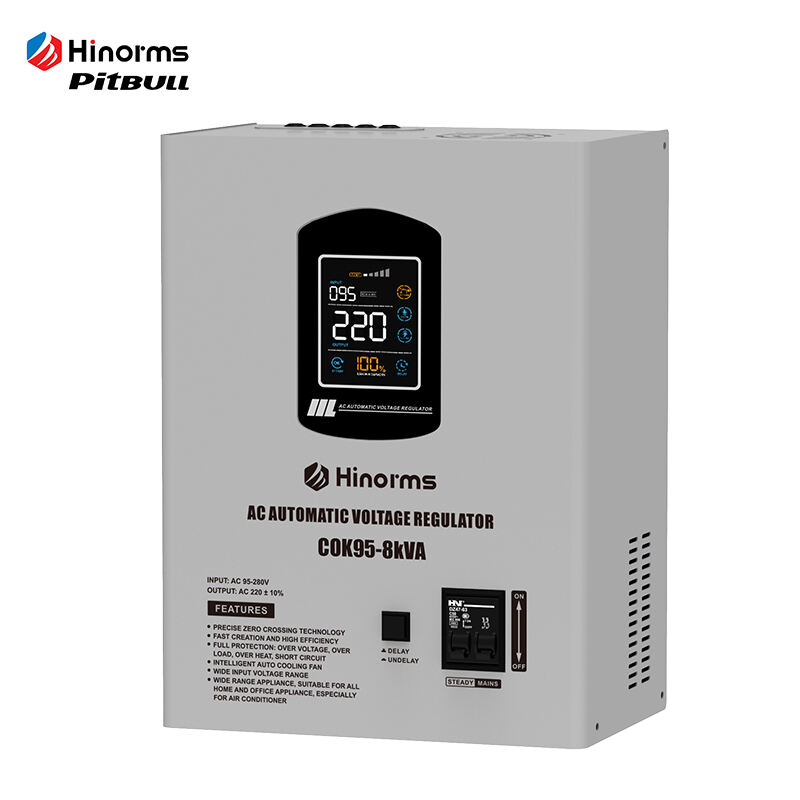

COK-8KVA
|
95-280V
|
1
|
39.5*30*19
|
45*35*25 |
20
|
21.1 |
COK-8KVA
|
60-280V
45-280V
|
1
|
39.5*30*19 | 45*35*25 |
21
|
22.1
|
COK-10KVA
|
95-280V
|
1
|
39.5*30*19 | 45*35*25 |
22.6
|
23.8
|
COK-10KVA
|
60-280V
45-280V
|
1
|
39.5*30*19 | 45*35*25 |
23.5
|
24.4
|

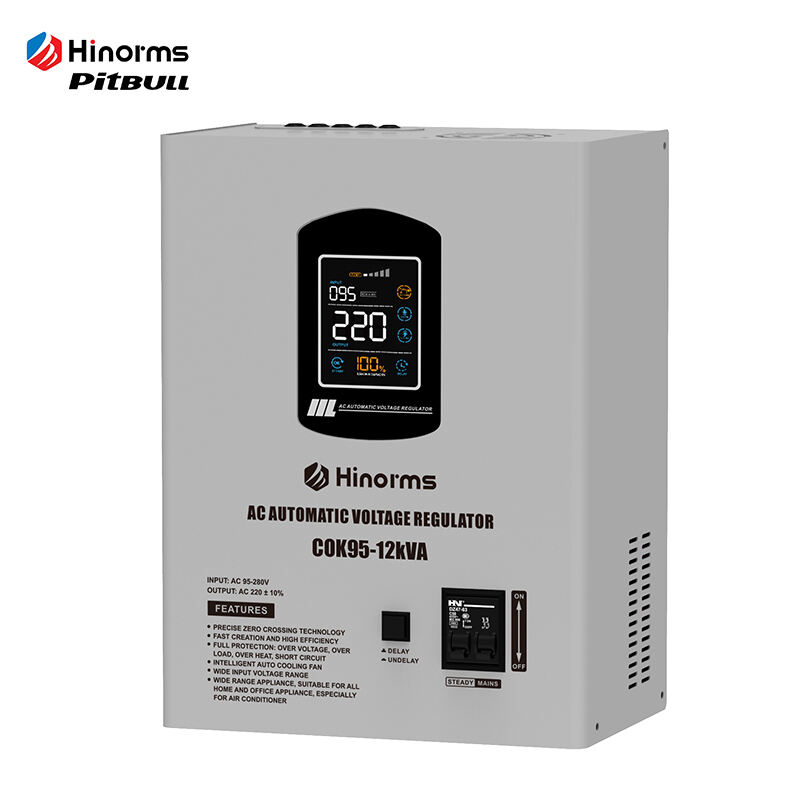

COK-12KVA
|
95-280V
|
1
|
39.5*30*19 | 45*35*25 |
23.3
|
24.4
|
COK-12KVA
|
60-280V
45-280V
|
1
|
39.5*30*19 | 45*35*25 |
24.7
|
25.6
|
