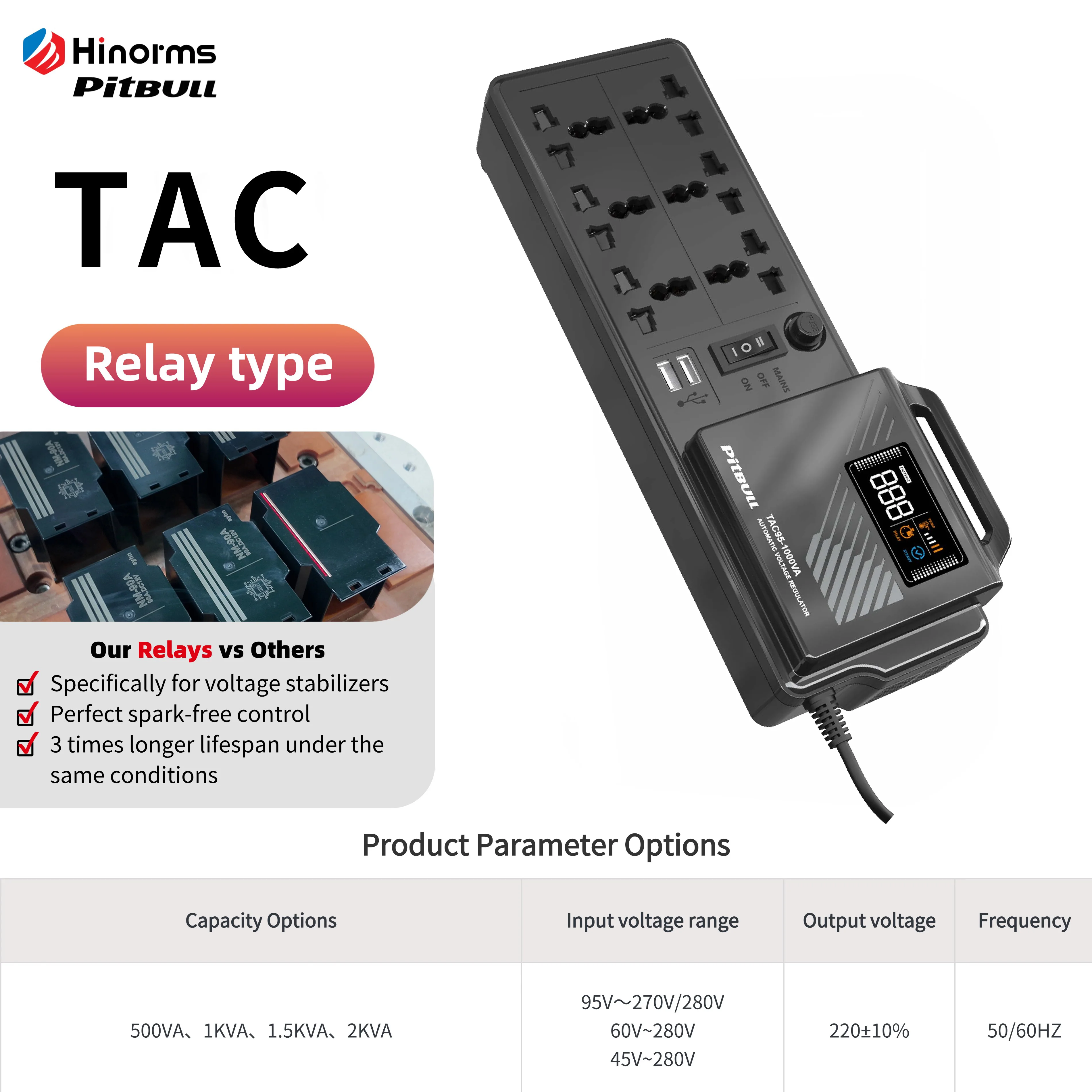

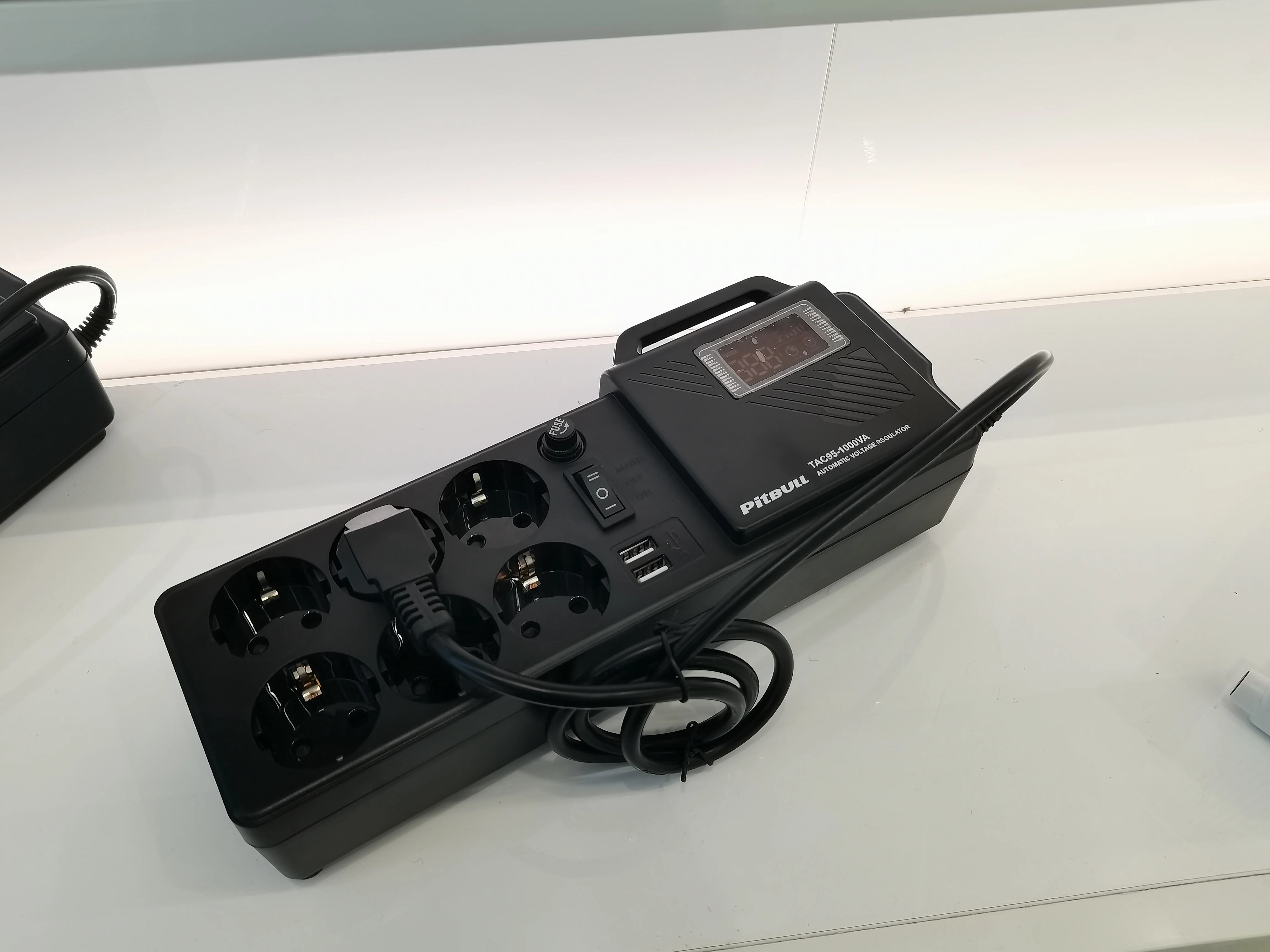

Relay Type Voltage Regulator TAC Series
This series is suitable for home and office use, ideal for computers, TVs, refrigerators, tablets, phone chargers, and more. It protects your devices from voltage fluctuations, ensuring they operate at optimal voltage levels.
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
Model | TAC |
Place of Origin: | Zhejiang, China |
Brand Name: | Pitbull/Hinorms |
Certification: | CE/ISO9001/ROHS/FCC |
Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
Delivery Time: | 7-45 days(depends on quantity) |
Payment Terms: | 30% Deposit 70% Balance Before Delivery |
Supply Ability: | 50000 Units/Month |
Applications
Competitive Advantage
Specifications
Product model | TAC | ||
Capacity | 0.5KVA/1KVA | ||
Input voltage range | AC 95-270V | ||
Output voltage | AC 220V | ||
Output Precision | ±10% | ||
Frequency | 50Hz/60Hz | ||
Phase types | Single Phase | ||
Function | Control Type | Relay Type | |
Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | ||
Delaying | 3-5secs(Short) ; 3-7mins(Long) | ||
Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | ||
Effciency | AC-AC | ≥95% | |
Environmental | Temperature | -20~50 degree | |
Humidity | <90% | ||
Elevation | <4000m |
Packing Information
Model | Pcs/Carton | Product Size(CM) | Carton Size(CM) | Net weight(KG) | Gross Weight(KG) |
TAC-0.5KVA | 6 | 29.8*11.7*7.2 | 46*39*19.5 | 10.1 | 11.3 |
TAC-1KVA | 6 | 29.8*11.7*7.2 | 46*39*19.5 | 10.8 | 12 |
