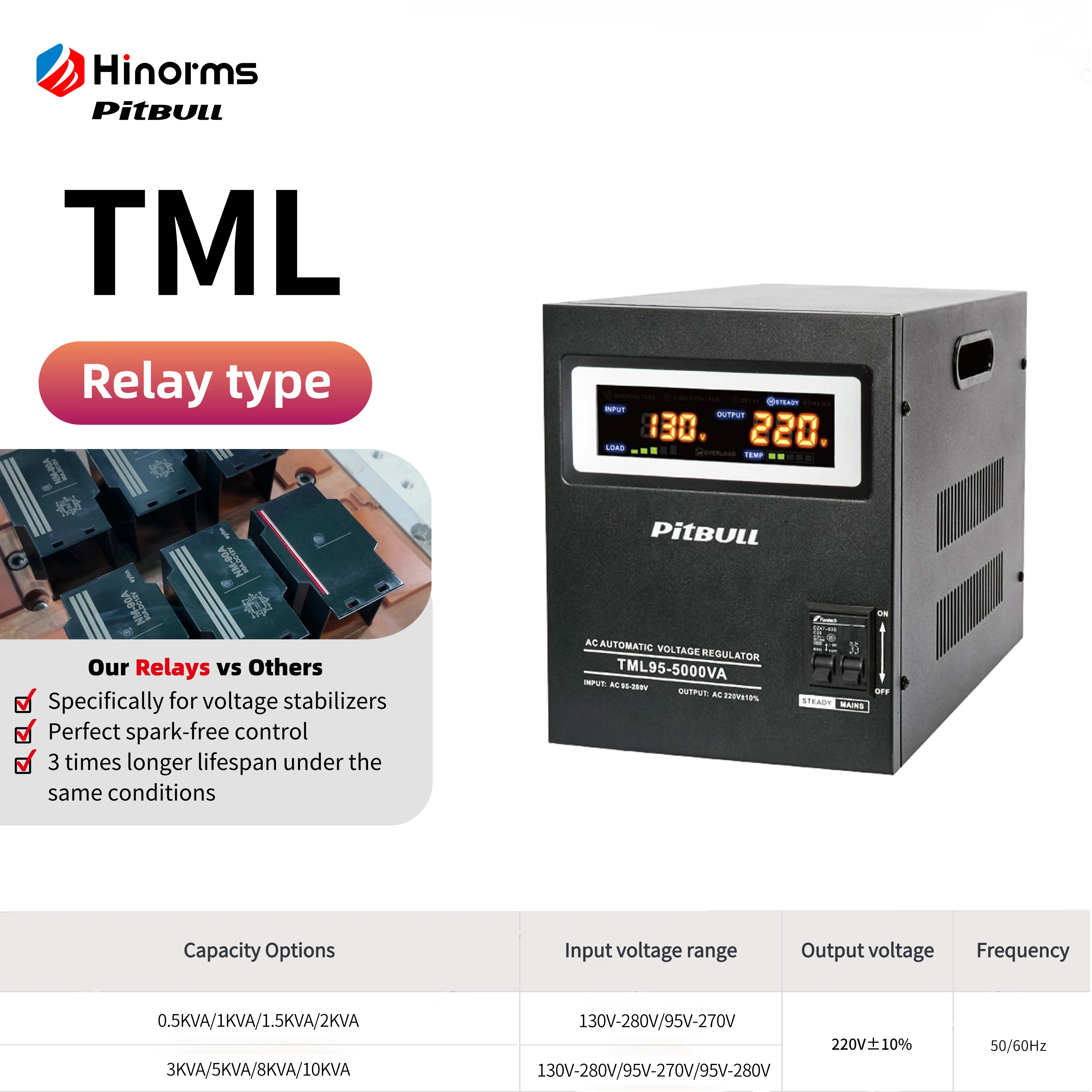

Relay Type Voltage Regulator TML Series
This series is highly versatile, making it ideal for various applications, especially home appliances. Its strong adaptability corrects local power grid distortions, ensuring a stable voltage output and reliable protection for electrical devices.
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
Model | TML |
Place of Origin: | Zhejiang, China |
Brand Name: | Pitbull/Hinorms |
Certification: | CE/ISO9001/ROHS/FCC |
Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
Delivery Time: | 7-45 days(depends on quantity) |
Payment Terms: | 30% Deposit 70% Balance Before Delivery |
Supply Ability: | 50000 Units/Month |
Applications
Competitive Advantage
Specifications
Product model | TML | |||
Capacity |
0.5KVA/1KVA/1.5KVA/2KVA/3KVA/5KVA |
8KVA/10KVA | ||
Input voltage range | Option(1) | AC 130-270V | AC 130-280V | |
Option(2) | AC 95-270V | AC 95-280V | ||
Output voltage | AC 220V(Customized for regional voltage.) | |||
Output Precision | ±10% | |||
Frequency | 50Hz/60Hz | |||
Phase types | Single Phase | |||
Function | Control Type | Relay Type | ||
Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | |||
Delaying | 3-5secs(Short) ; 3-7mins(Long) | |||
Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | |||
Effciency | AC-AC | ≥95% | ≥98% | |
Environmental | Temperature | -20~50 degree | ||
Humidity | <90% | |||
Elevation | <4000m |
Packing Information
Model
|
Input Range
|
Pcs/Carton
|
Product Size(CM)
|
Carton Size(CM)
|
Net Weight
(KG)
|
Gross Weight
(KG)
|

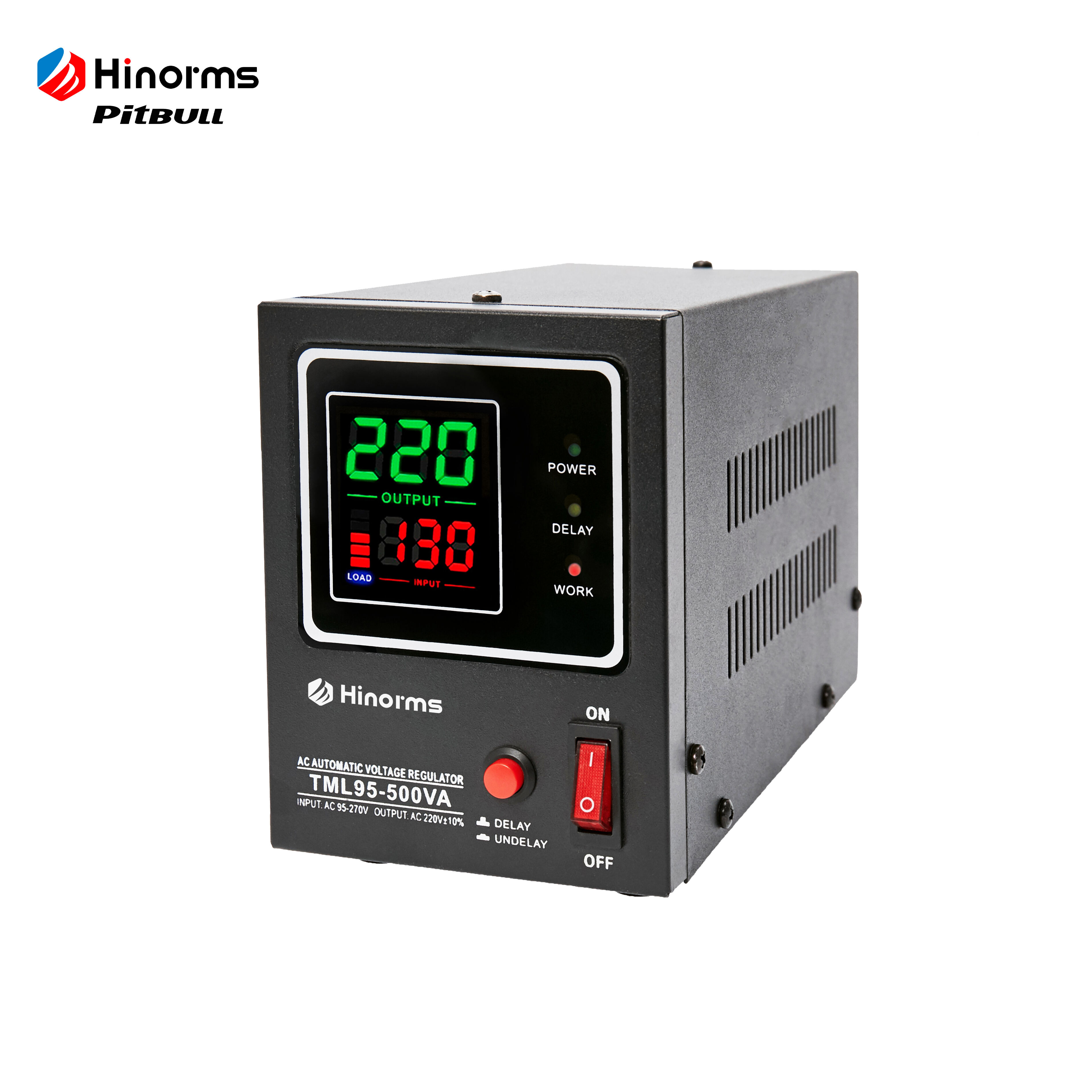

TML-0.5KVA
|
130-270V
95-270V
|
4
|
25.5*11*16
|
32.5*32.1*39
|
10.6
|
12
|

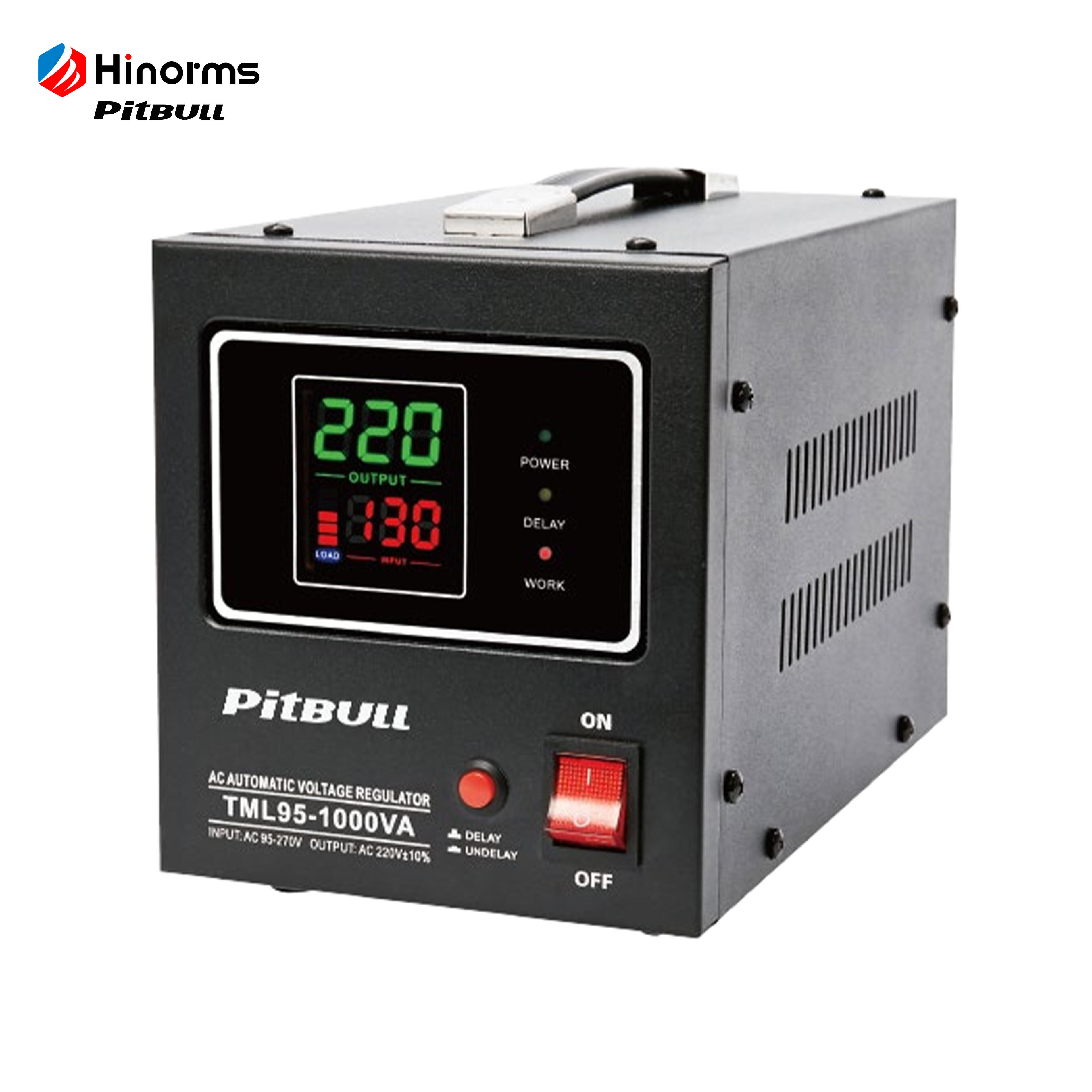

TML-1KVA
|
130-270V
95-270V
|
4
|
28.5*15*19
|
39.6*33*45
|
14.2
|
16
|

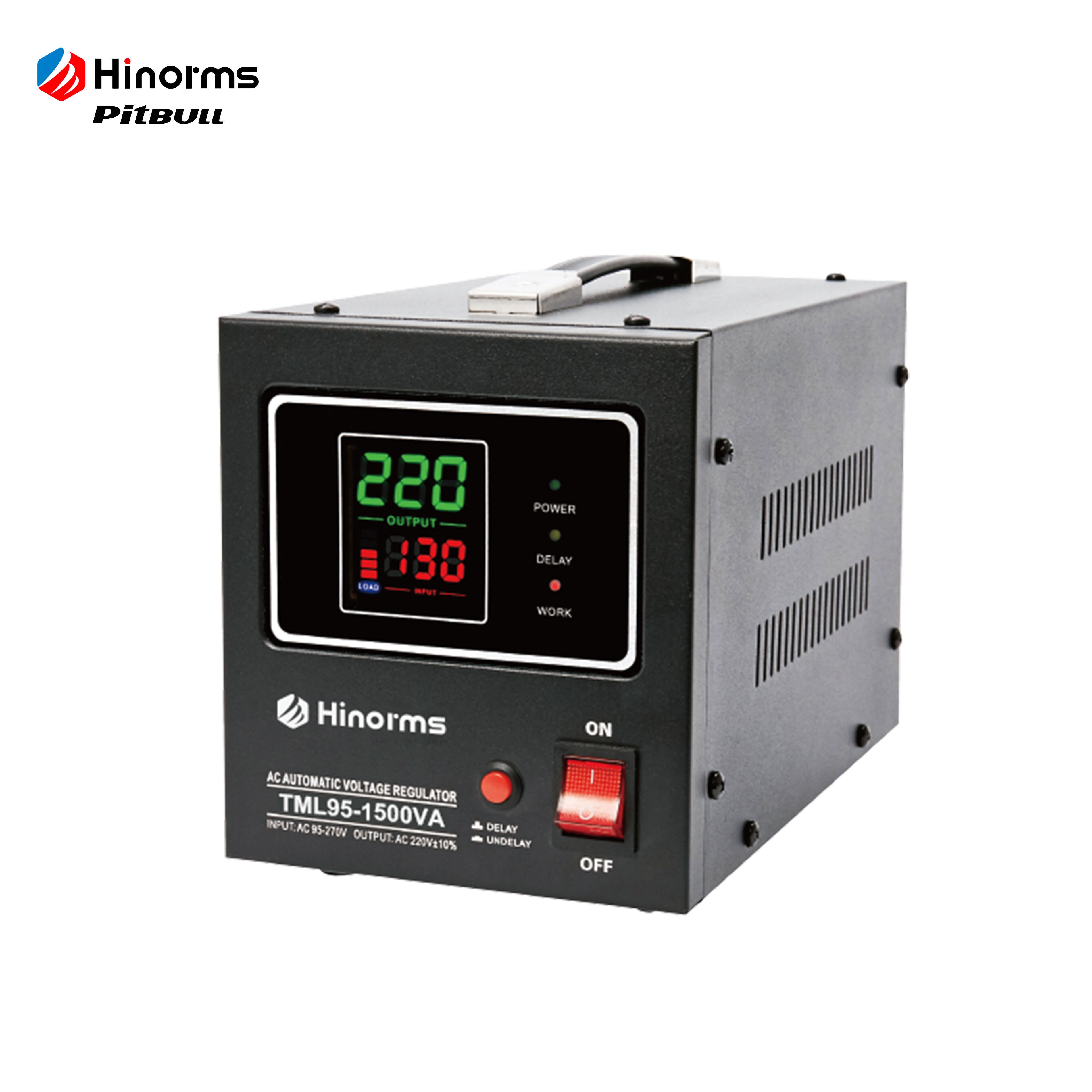

TML-1.5KVA
|
130-270V
95-270V
|
4
|
28.5*15*19
|
39.6*33*45
|
20
|
21.2
|
TML-2KVA
|
130-270V
95-270V
|
4
|
28.5*15*19
|
39.6*33*45
|
22
|
23.4
|

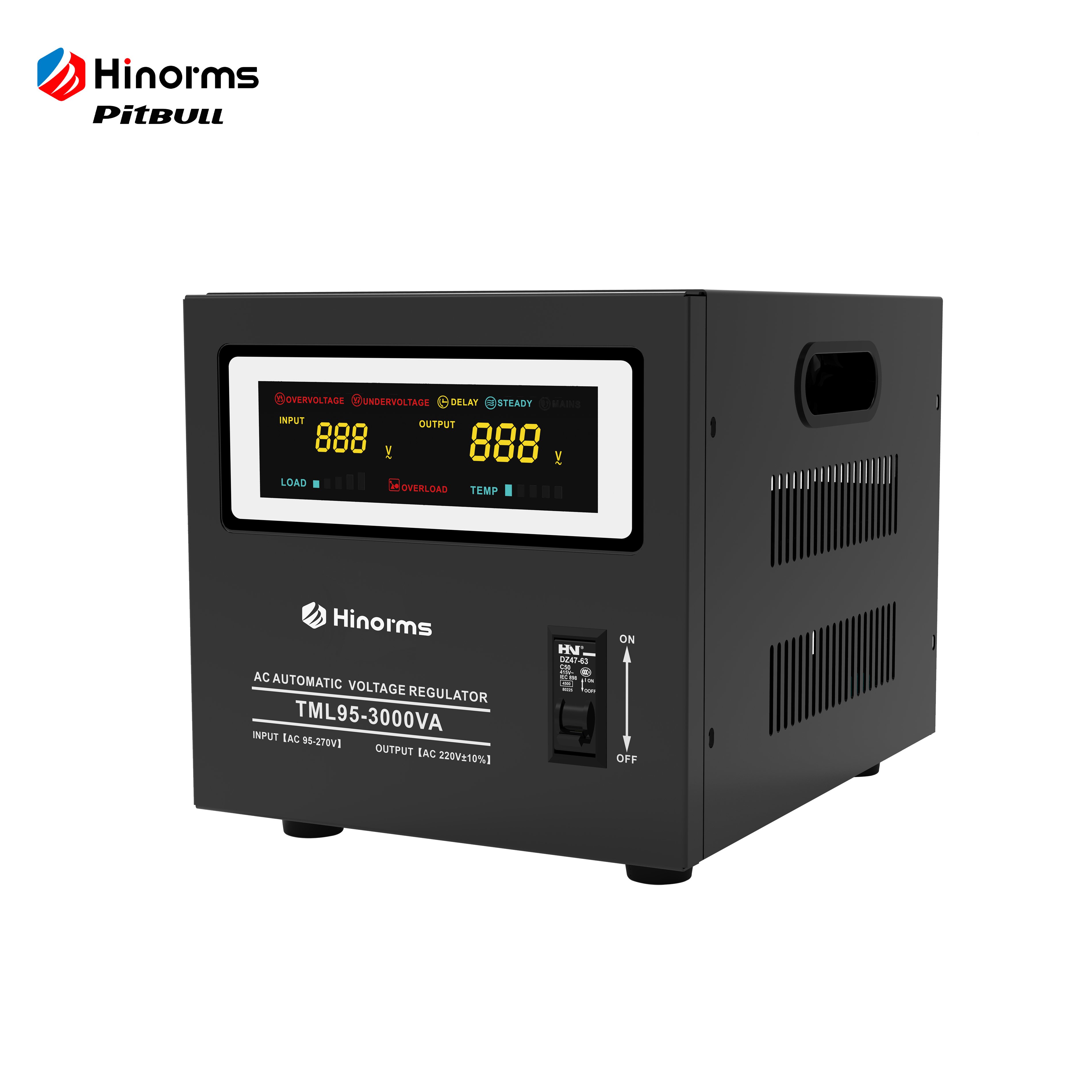

TML-3KVA
|
130-270V
95-270V
|
2
|
30*23*21.5
|
35.5*28.5*27.5
|
10.1
|
10.7
|
TML-5KVA
|
130-270V
95-270V
|
1
|
34.5*22.5*27.3
|
40*28*34 |
14.4
|
15.5
|

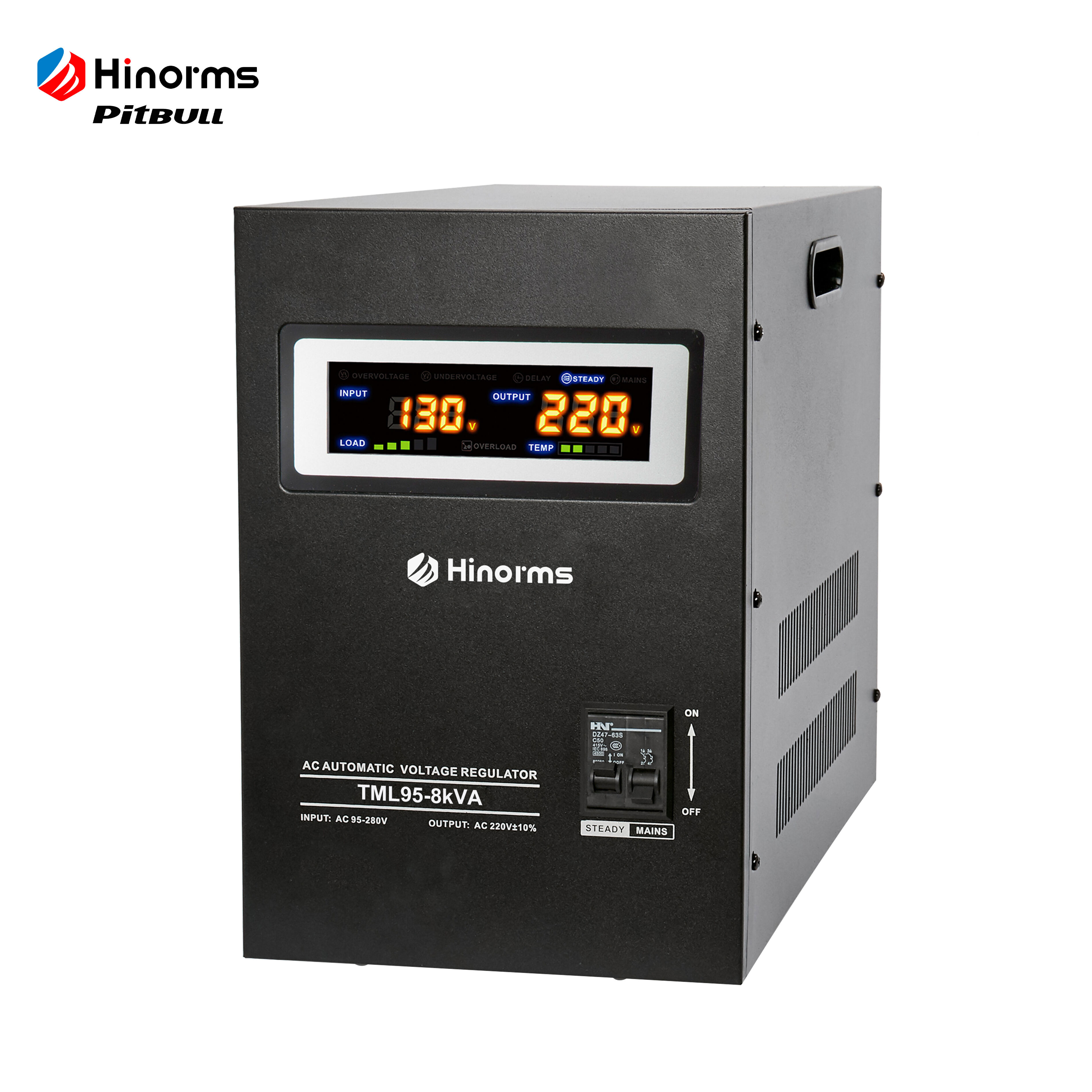

TML-8KVA
|
130-280V
95-280V
|
1
|
41.5*24*36
|
47*30*42.5
|
23.6
|
24.6
|

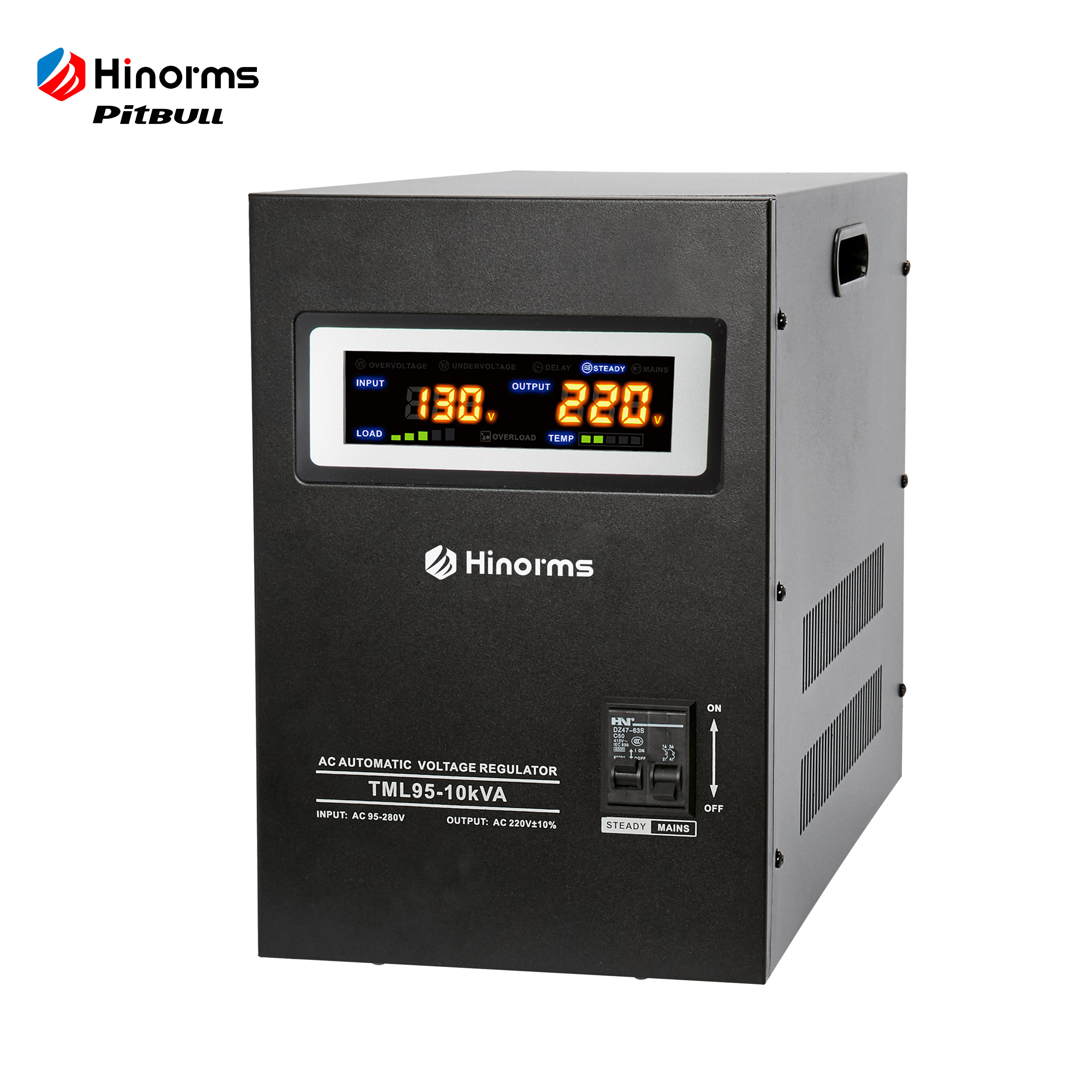

TML-10KVA
|
130-280V
95-280V
|
1
|
41.5*24*36 | 47*30*42.5 |
26
|
27
|
