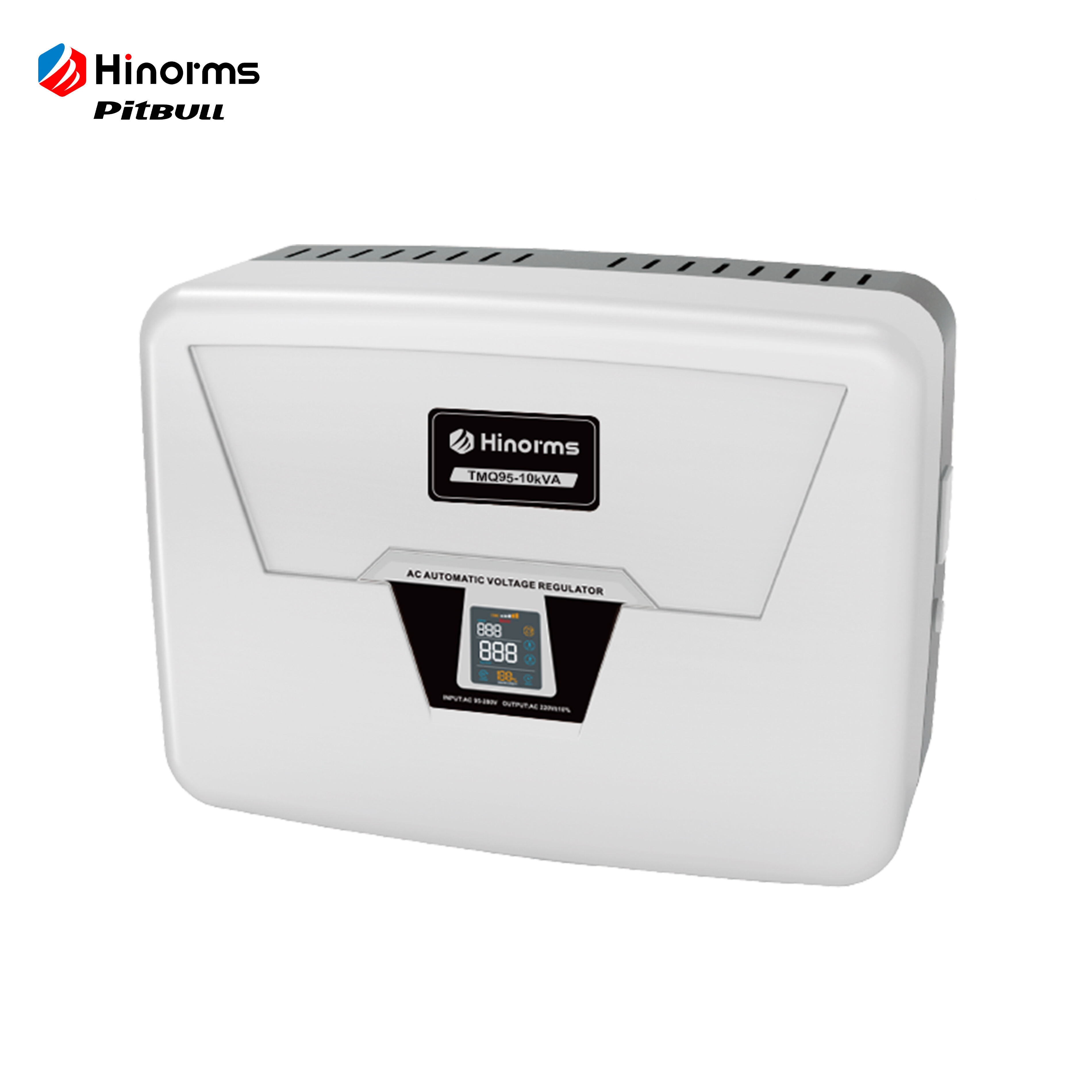

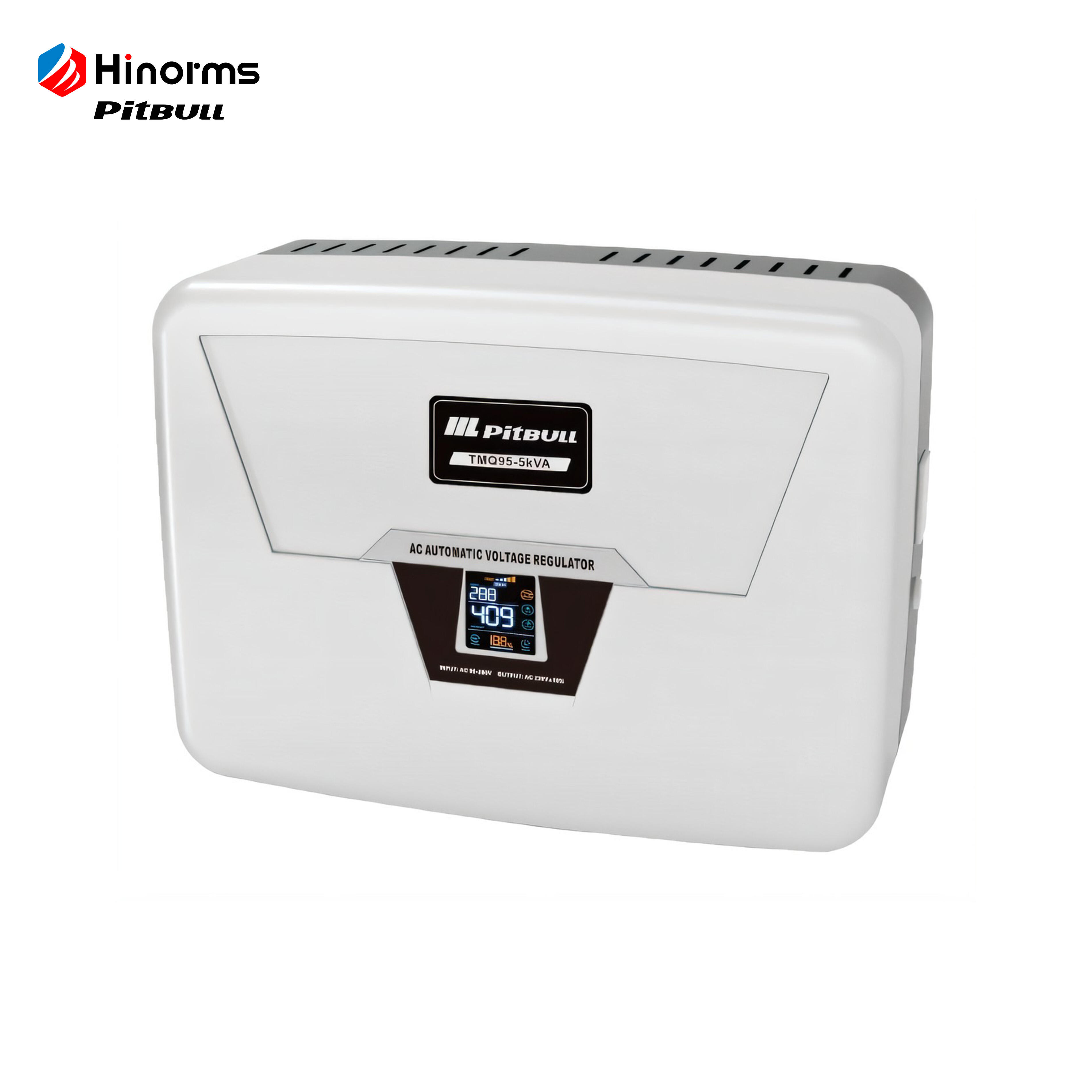

Relay Type Voltage Regulator TMQ Series
This series is highly versatile, making it ideal for various applications, especially home appliances. Its strong adaptability corrects local power grid distortions, ensuring a stable voltage output and reliable protection for electrical devices.
- Description
- Specifications
- Online Inquiry
- Recommended Products
Description
| Model | TMQ |
| Place of Origin： | Zhejiang, China |
| Brand Name： | Pitbull/Hinorms |
| Certification: | CE/ISO9001/ROHS/FCC |
| Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
| Delivery Time: | 7-45 days(depends on quantity) |
| Payment Terms: | 30% Deposit 70% Balance Before Delivery |
| Supply Ability: | 50000 Units/Month |
Applications
Home Appliances, Office Equipment, Medical Equipment, Industrial Equipment
Competitive Advantage
• We are the standard drafter of the voltage stabilizer industry in China. Our founder, Mr. Hu, is a member of the China Power Supply Society.
• For over 20 years, we have focused solely on the research and manufacturing of voltage stabilizers.
• Our products have no substitutes in the market, because after years of hard work, we are the only factory that has truly solved the multiple pain points in the industry.
Specifications
| Product model |
TMQ |
|||
| Capacity | 5KVA | 10KVA/12KVA/15KVA | ||
| Input voltage range | Option(1) |
AC 95-280V |
||
| Option(2) |
AC 60-280V |
|||
| Option(3) |
AC 45-280V |
|||
| Output voltage | AC 220V(Customized for regional voltage.) | |||
| Output Precision | ±10% | |||
| Frequency | 50Hz/60Hz | |||
| Phase types | Single Phase | |||
| Function | Control Type | Relay Type | ||
| Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | |||
| Delaying | 3-5secs(Short) ; 3-7mins(Long) | |||
| Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | |||
| Effciency | AC-AC | ≥95% | ≥98% | |
| Environmental | Temperature | -20~50 degree | ||
| Humidity | <90% | |||
| Elevation | <4000m | |||
Packing Information
|
Model
|
Input Range
|
Pcs/Carton
|
Product Size(CM)
|
Carton Size(CM)
|
Net Weight
(KG)
|
Gross Weight
(KG)
|
|
TMQ-5KVA
|
95-280V
|
1
|
44*32*21
|
49.8*37*26.5
|
16.5
|
17.8
|
|
TMQ-5KVA
|
60-280V
45-280V
|
1
|
44*32*21
|
49.8*37*26.5
|
17.1
|
18.4
|
|
TMQ-10KVA
|
95-280V
|
1
|
44*32*21 | 49.8*37*26.5 |
22.4
|
23.7
|
|
TMQ-10KVA
|
60-280V
45-280V
|
1
|
44*32*21 | 49.8*37*26.5 |
22.7
|
23.6
|
|
TMQ-12KVA
|
95-280V
|
1
|
44*32*21 | 49.8*37*26.5 |
23.2
|
24
|
|
TMQ-12KVA
|
60-280V
45-280V
|
1
|
44*32*21 | 49.8*37*26.5 |
24
|
25.6
|
|
TMQ-15KVA
|
95-280V
|
1
|
44*32*21 | 49.8*37*26.5 |
24.9
|
26.2 |
|
TMQ-15KVA
|
60-280V
45-280V
|
1
|
44*32*21 | 49.8*37*26.5 | 25.3 | 27.3 |
